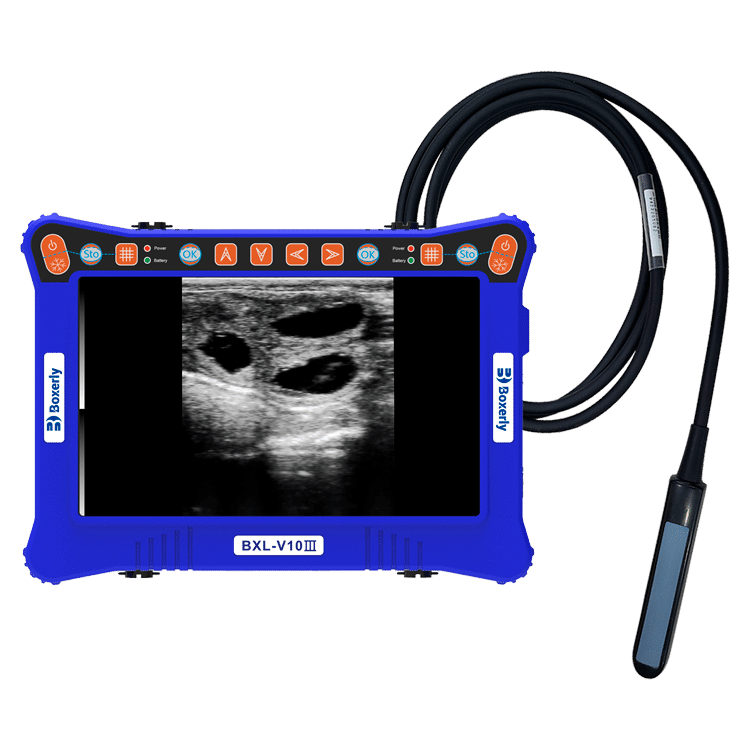

BXL-V10Ⅲ Livestock Portable Wireless USG Machine Entry-level Model

Technical Specifications

1. Model: BXL-V10Ⅲ

2. Main Unit Dimensions: 219 mm × 158 mm × 36 mm

3. Software Version: B3.3 HD version, specialized veterinary software

4. Protection: Waterproof and dustproof, with an IP54 rating; robust and durable

5. Controls: Left and right side buttons for ease of use with either hand

6. Battery Life: Over 6 hours of operation on a single charge

7. Design: Strap-style, handheld design

8. Display Screen: ≥7.0-inch full-view high-brightness high-resolution, high-definition LCD, wide temperature range (-30°C to 80°C)

9. Probe Upgrade: No attached accessories

10. Scanning Method: Electronic convex array (micro-convex), electronic linear array

11. Image Processing: Pseudo-color, grayscale correction, image smoothing, histogram, microcomputer control, and digital scan converter (DSC), utilizing technologies such as digital beamforming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA), real-time dynamic point-by-point receiving focusing (DRF), digital frequency scanning (DFS), and frame correlation, ensuring clear, stable, and high-resolution images

12. Image Display Modes: B, 2B, 4B, B/M, M, and various other display modes

13. Image Display: Large convex probe depth: 90-240 mm, 16 adjustable levels; rectal probe depth: 60-130 mm, 8 adjustable levels; images can be adjusted up/down, left/right, 256 levels of grayscale, 45 types of animal body 4 marks

14. Frequency Adjustment: Three levels of adjustment for the rectal probe (5.0-7.5 MHz) and the large convex probe (2.5-5.0 MHz)

15. Storage: One-touch storage; supports USB storage and previewing, with one-touch storage functionality on both left and right side buttons

16. Grid Setup: Quick measurement function

17. Video and Charging Interface: Integrated, eight-pin waterproof interface

18. Grayscale: 256 levels

19. Pseudo-color: Multiple pseudo-color processing options

20. Patent: Patented product

21. Main Unit Rated Input: DC 14V 3.0A

22. Power Adapter Output: DC 14.0V 3.0A

23. Power Supply: 100-240V~1.2-0.6A, Frequency: 50-60Hz

24. Preset Functions: Various system presets

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thailand, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 to 7 days

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Probe Configuration:

Standard Configuration: 6.5 MHz 80-element rectal probe (or R60/3.5 MHz

80-element convex probe)

Optional Configuration: R20/5.0 MHz 80-element micro-convex probe

Standard Configuration:

– 1 main unit – 1 probe

– 1 power adapter

– 1 set of training USB and user manual – 1 shoulder strap

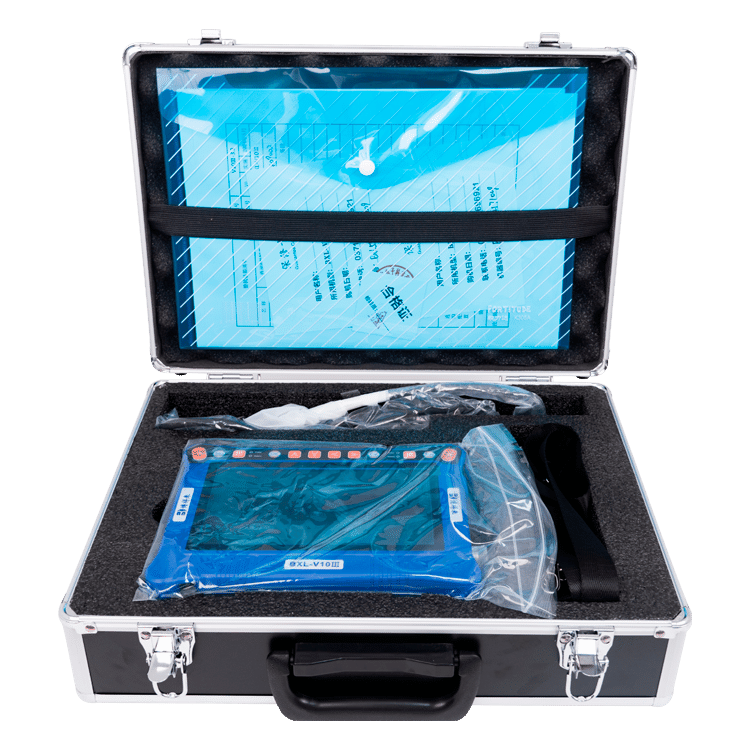

– 1 carrying case

Optional Probes:

– 3.5 MHz large convex array probe

– 6.5 MHz linear array probe for large animals (rectal)

– 6.5 MHz linear array probe for sheep/alpaca (rectal)

Warranty Period
