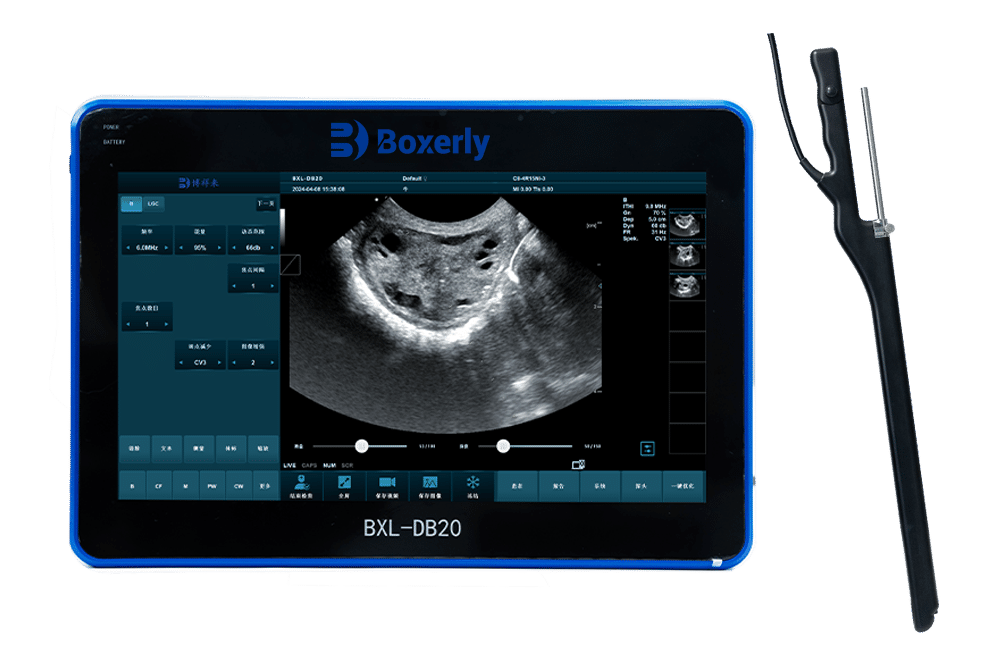

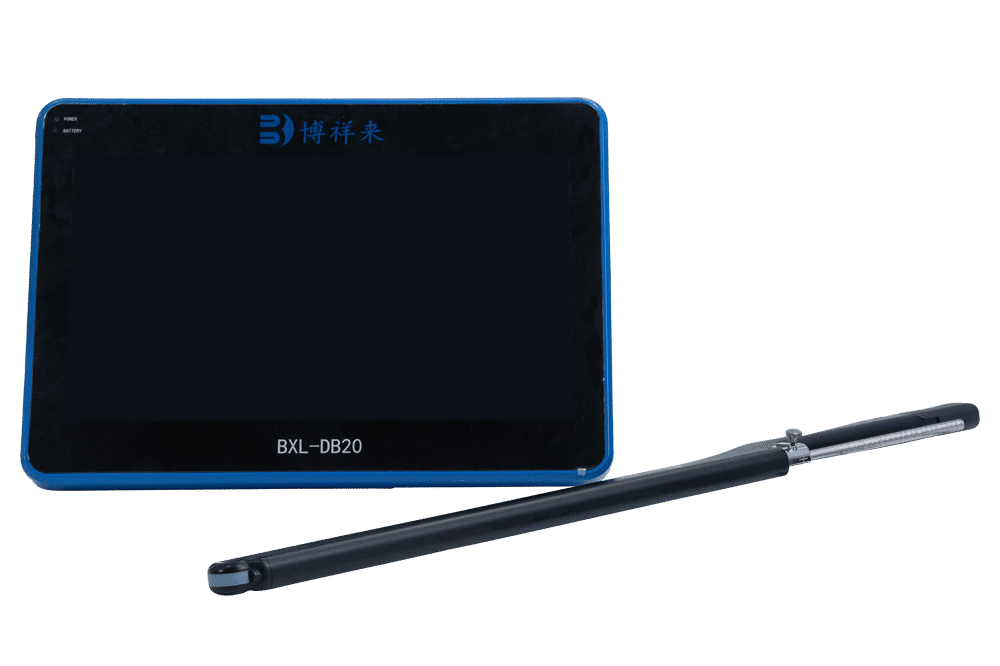

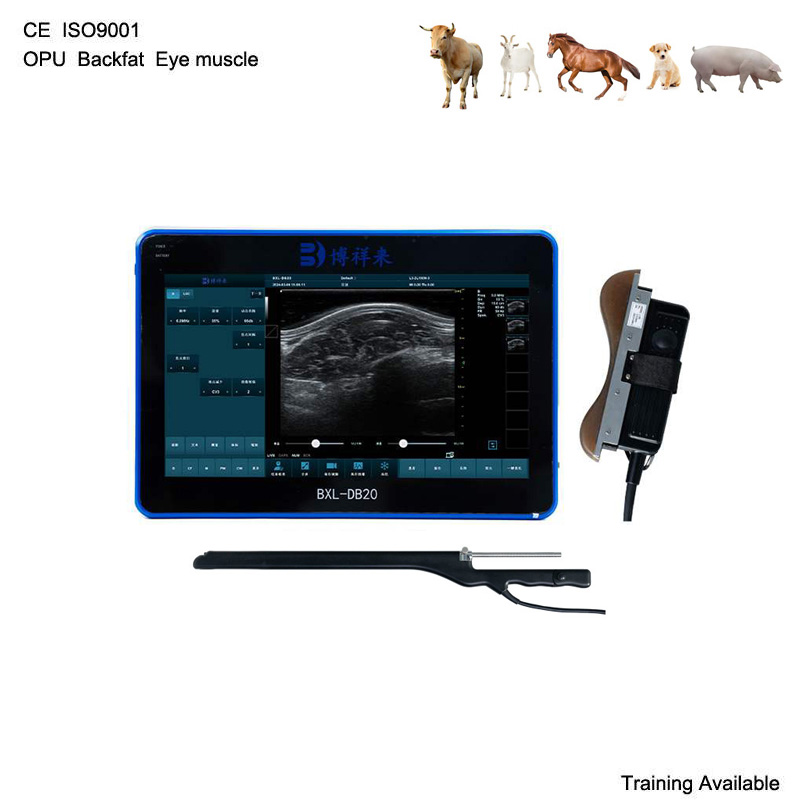

BXL-DB20 Color Doppler Cattle OPU Equipment

BXL-DB20 Main Technical Specifications

1. Applicable conditions: waterproof and dustproof, IP54,anti-fall
2. Power supply: AC220V±10%,50Hz±1
3. Device weight: 6KGs
4. Main screen size: 15-inch; Touch screen Resolution: 1920*1080

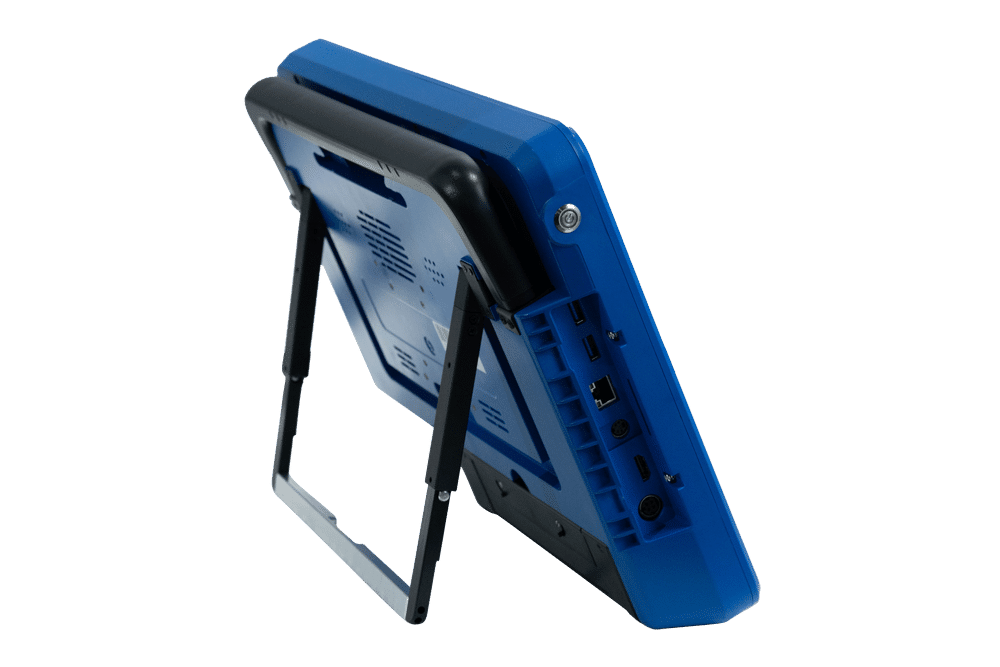

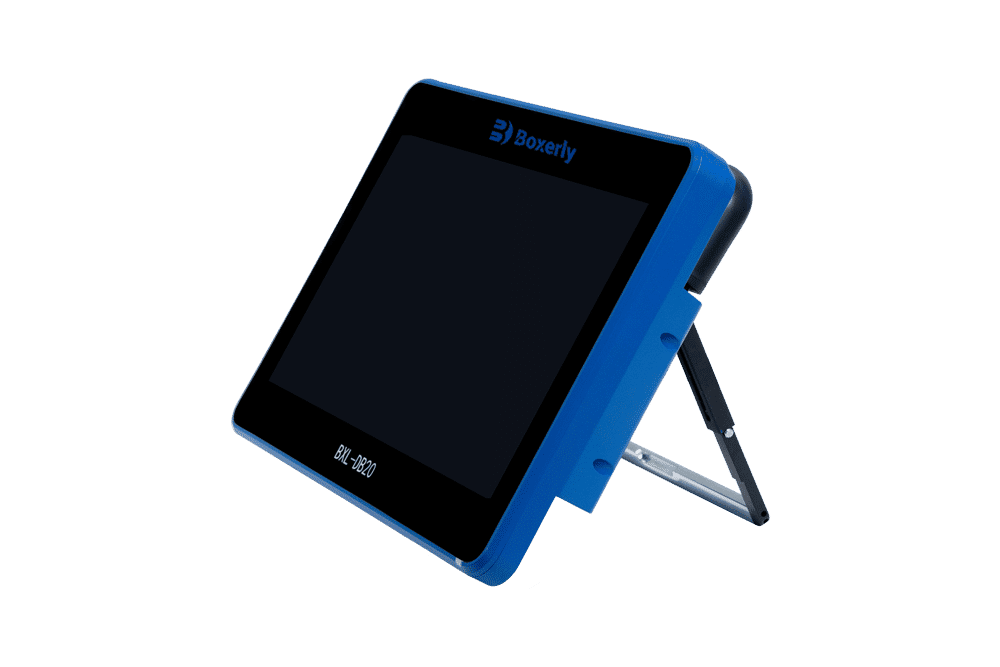

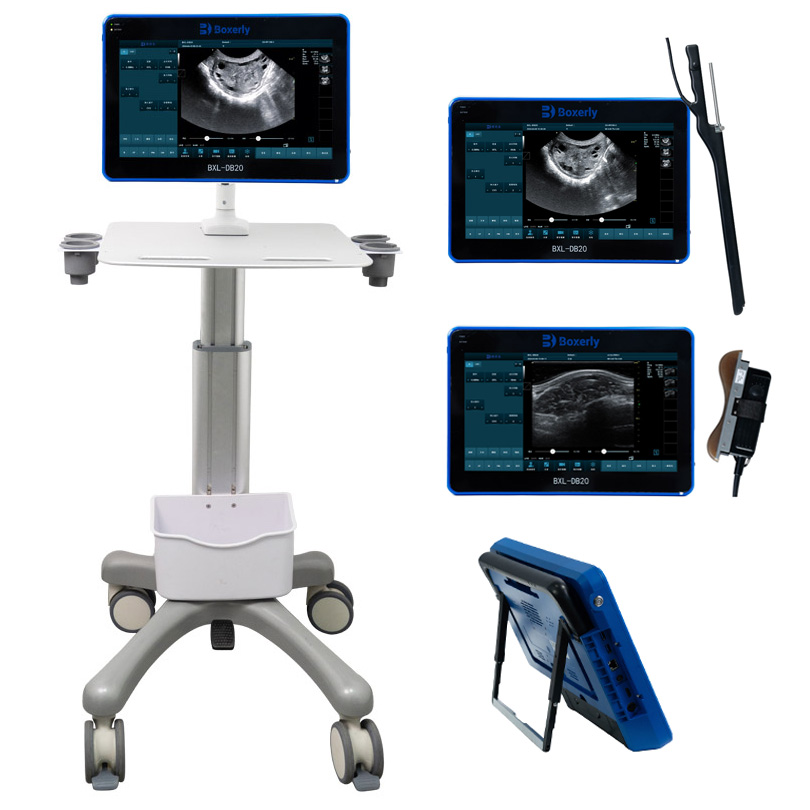

5. The device has a handle (can be suspended), and a mobile bracket (adjustable angle), and can be suspended on a mobile cart.
6. Digital Channels:64 Channels
7. Imaging mode: Color Doppler imaging system
8. Scan depth: ≥30cm
9. Image display: 256 grayscale
10. Animal body marker: ≥24 Species
11. Wireless WiFi connection and Bluetooth connection wirelessly connect mobile phones and IPad synchronization display images with wireless remote control. RFID Electronic Ear Tag Scanning
12. Working time: ≥3 hours
13. Image, video storage.

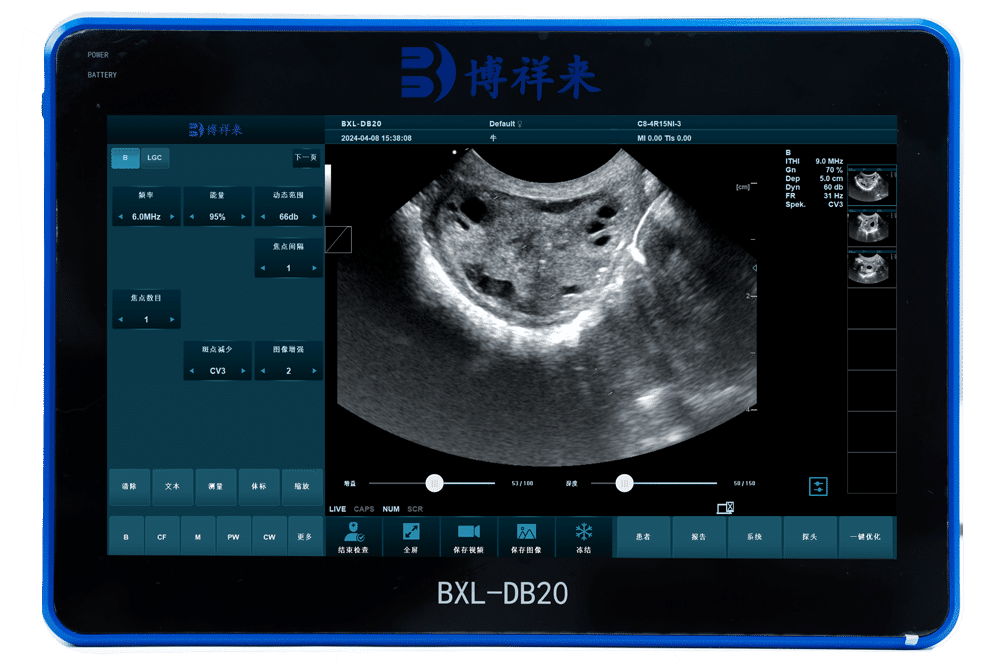

14. Built-in professional OPU system program, can set the location direction of the oocyte retrieval needle. There are oocyte retrieval needle guide line, oocyte retrieval needle guide line with scale ruler, oocyte retrieval needle guide line with center line, oocyte retrieval needle puncture image enhancement processing.
15. Image rotation: 0 °, 90 °, 180 °, 270 ° rotation; Image flip: up and down.
16. Scan type: normal, compound extension, etc
17. Host with stylus, wireless connection keyboard, wireless connection mouse

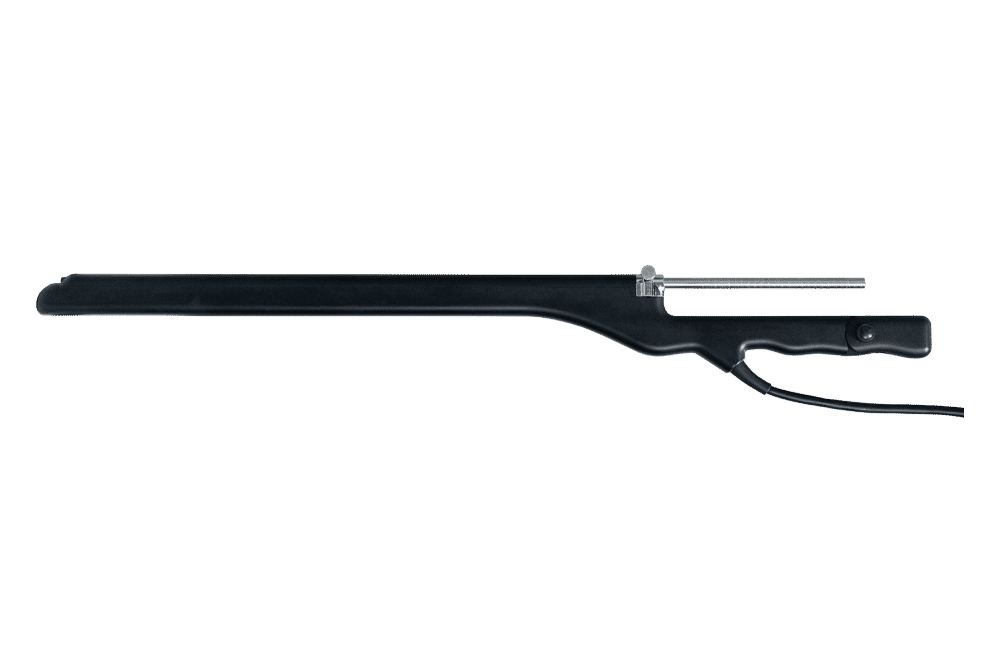

18. Optional probe type: Animal OPU special micro-convex probe, animal special back fat linear arrar probe and other probes
19. Mage adjustment: Focus adjustment, focus position and quantity adjustable. The image frame is adjusted on average and the frame is adjustable on average. The spots are reduced with 5 adjustments.
20. Image Editing: Can edit stored images

  • Product Details
  • FAQS
  • Guarantee

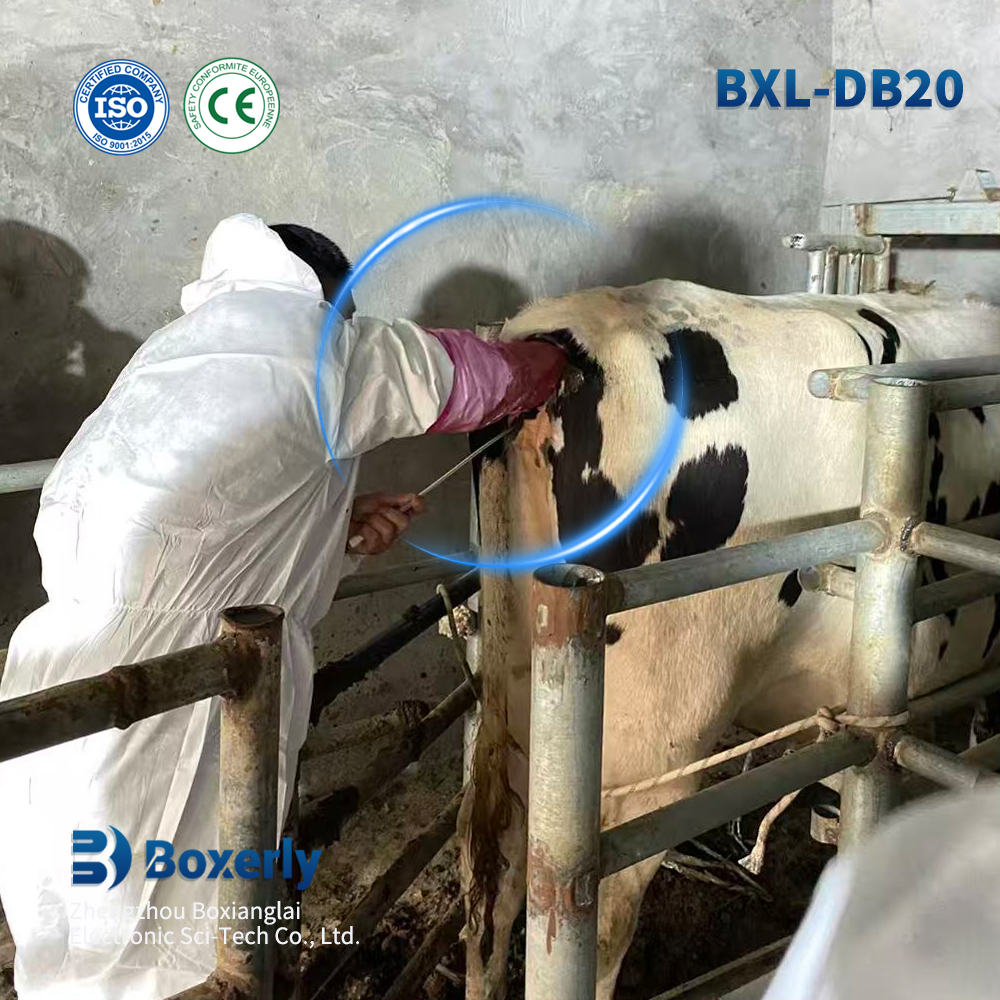

The BXL-DB20 portable cattle OPU Equipment provides a reliable scientific basis for improving insemination rates.

Q:Who are we?

A: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q:How long is the warranty period of your product?

A: The warranty of our main units are 18 months, main parts are 12 months.

Q: What is your delivery time?

A: Small quantity(less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity(more than 30 units)is negotiable.

Warranty Period:

Main unit: 18 months

Probe: 12 months
