BXL-V60 Head-mounted video goggle vet ultrasound scanner | 4K HD | Change probe

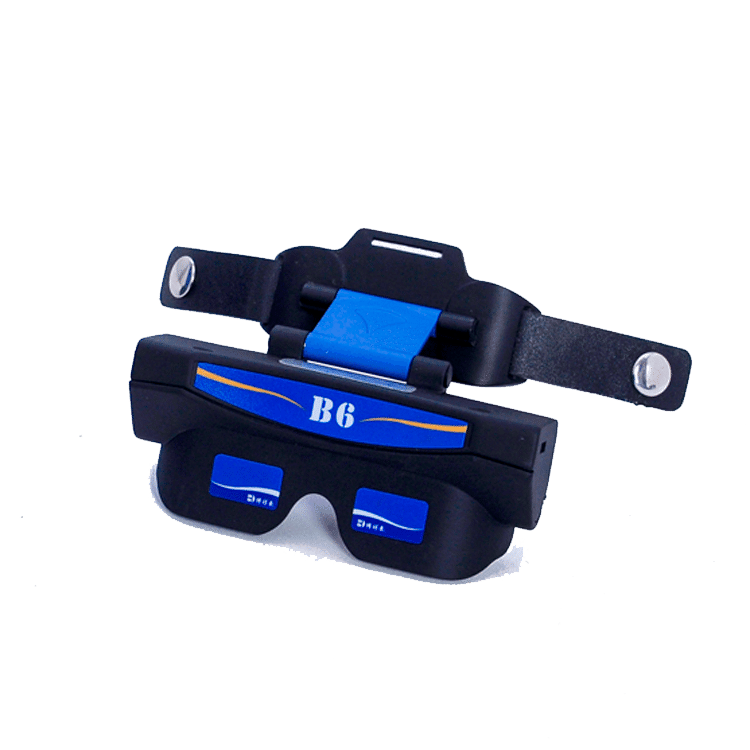

Video glasses technical parameters

1. Configure B6 type 2D3D switchable video glasses

2. Semi-immersive design

3. The original picture is not distorted, and there is no screen window or graininess.

4. HD OLED screen

5. Screen size: 80 inches

6. Binocular 36 degree transmitted light group.

7. Resolution: 1024*768

8. Transmission interface: AV aviation head HD waterproof interface

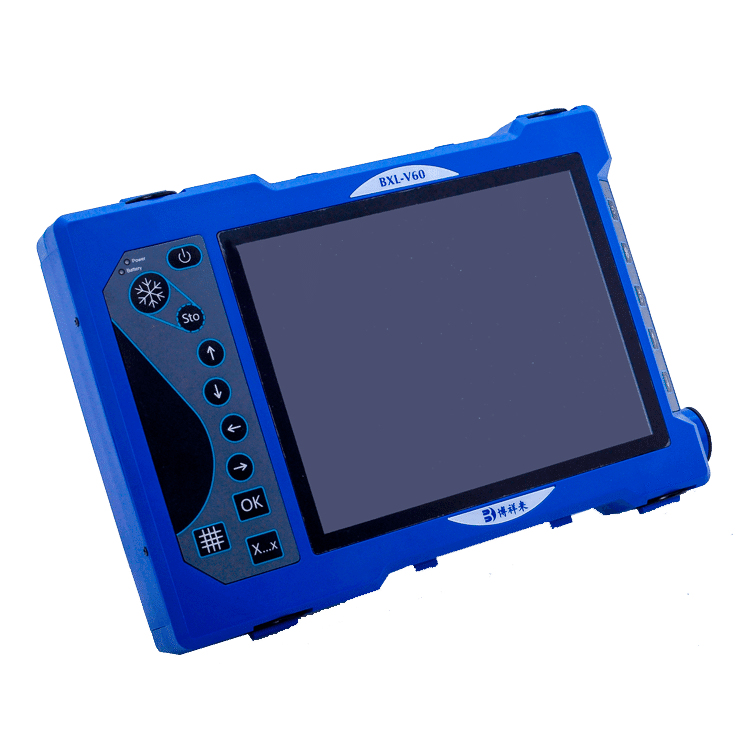

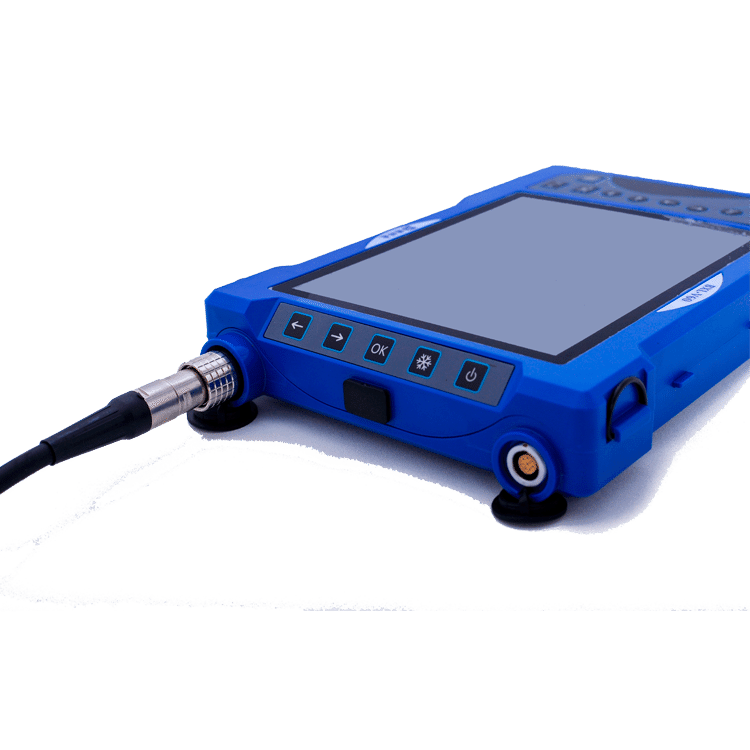

Host technical parameters

1.The whole machine is waterproof and dustproof, and the waterproof level is IP56; strong and durable

2.Probe: probe upgrade, no appendages; It can be equipped with large animal rectal probe, abdominal electronic convex array probe, special rectal probe for sheep/alpaca, backfat eye muscle area probe

3.Left and right buttons (convenient for left and right hand operation)

4.Work for more than 7 hours on one charge

5.Display: Configure B6 type 2D3D switchable video glasses; Host display: 8.0-inch high-definition LCD display;

6. Can be equipped with professional backfat probe, measuring backfat eye muscle area, automatic backfat thickness measurement, lean meat rate measurement function;

7.Professional custom sun visor, adjustable

8. One-key screen off protection function, equipped with a protection board and a bag, it is more convenient to operate with video glasses

9. Position markings: beef cattle, dairy cows, buffaloes, goats, sheep, alpaca, pigs, cats, dogs, etc., no less than 45 kinds of animal position markings are optional

10. Grayscale：256；

11. With movie playback, 256 frames can be visited frame by frame

12.16 channels

13.Storage: One key storage; and support U disk storage preview, etc.

14. Host rated input: DC14V 3.0A;

15. Adapter output: DC14.0V 3.0A;

16. Gain range: 10-110; near field gain -31-0; far field gain 0-31

17. Dynamic adjustment range: 12-147

18. Depth: Maximum depth ≥270CM

19. Frame related: 5-20

20. Brightness: 5-31

21. Focus: 1-16 adjustable

22. Contrast ratio: 20-120

23. Network power supply: 100-240V～1.2-0.6A Frequency: 50-60Hz;

24.Patented products, more than three patents

25. Weight: the weight of the whole machine is 1.2KG

26. Image frame rate: 60

27. Image U disk/TF card storage and browsing function;

28. Pseudo-color: 8 kinds of pseudo-color processing

29. Multiple system preset functions

30. Host size: about 206 × 120 × 35 (mm, length × width × height);

31.10 kinds of grid settings quick measurement function, multiple quick measurement methods; distance, circumference, area, volume, heart rate, cycle measurement function; conventional heart measurement function; backfat/concretion rate measurement function, etc.

31. Host memory≥16G



Function

1. Equipped with special video glasses, the image is clear and easy to operate;

2. Various animals detect pregnancy, litter size, stillbirth, etc.;

3. Pig, cow, goat, sheep, horse, camel, dog, cat, camel distance, circumference, area, volume, heart rate, cycle measurement function; routine heart measurement function; backfat/concretion rate measurement function, etc.

4. Detection of back fat, eye muscle area and lean meat rate;

5. Detection of uterine diseases, ovaries, corpus luteum, follicular development, etc.;

6. One-key automatic detection of back fat function;



Features

• Comfortable and easy vet ultrasound machine

• Accurate and fast cow pregnancy test

• Designed to be durable for everyday wear and tear on the farm

•This time our newest model of ultrasound video goggles is more comfortable, with excellent adjustment on the user’s head. If you examine a lot of animals in a row or work in very light rooms, these goggles with clear, legible image will make your work more comfortable.

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thailand, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 to 7 days

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

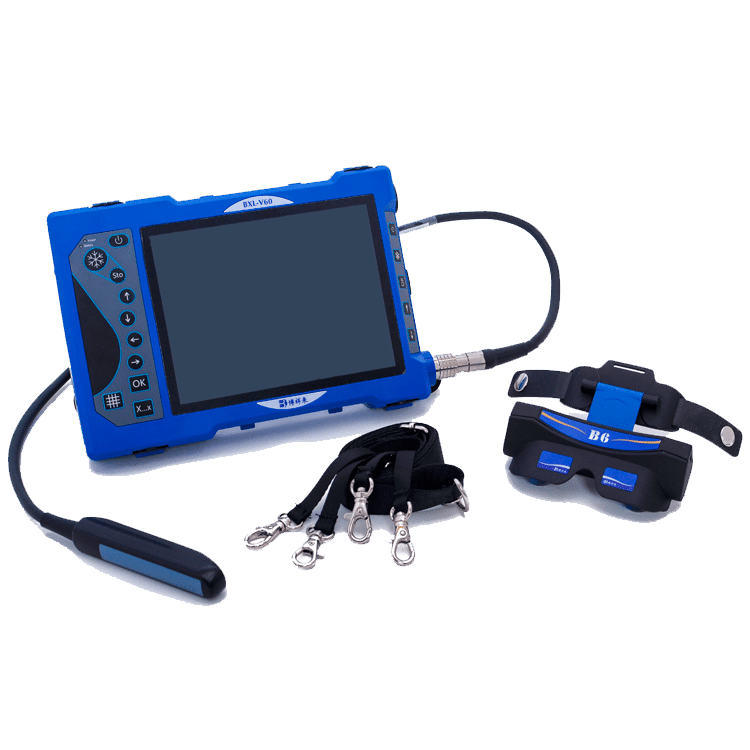

Standard configuration:

One host (including battery)、One video glasses、6.5MHz rectal probe、Adapter, host protection board, manual/warranty card/certificate, suitcase, shoulder bag.

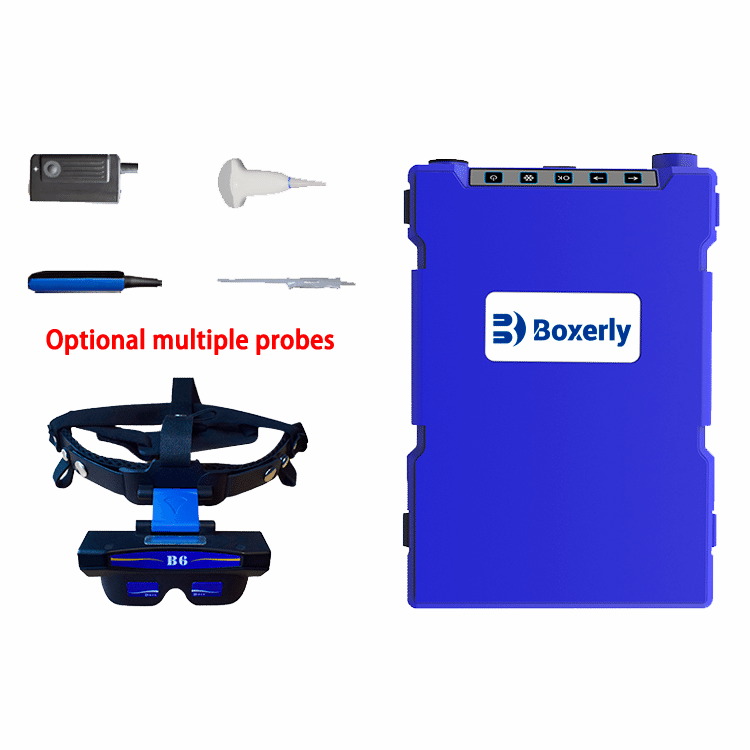

Optional configuration:

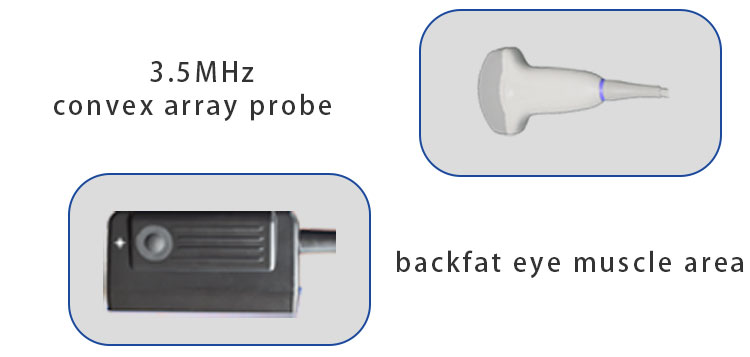

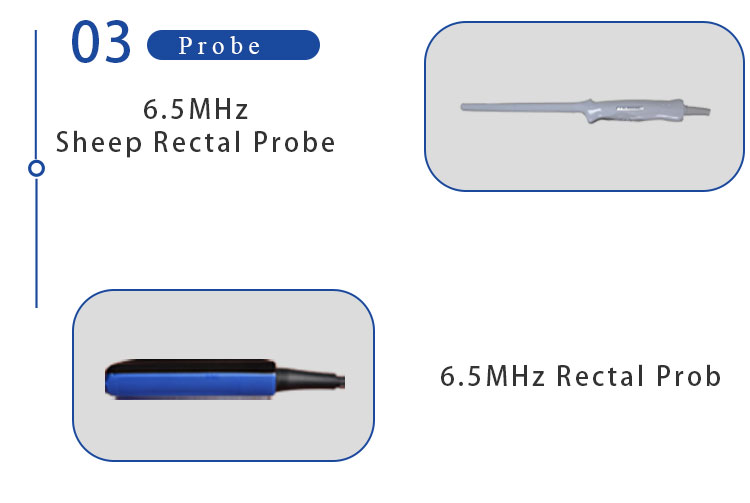

6.5MHz rectal probe, 3.5MHz convex array probe, 6.5MHz sheep rectal probe, backfat eye muscle area probe





Warranty Period

Veterinary Ultrasonic Equipment
Main unit	Probe	appendix	Name of main parts or accessories
18 months	12 months	–	Flat Panel Display、Ultrasound display probe
