BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W

The BXL-S100 is a fully digital veterinary rectal ultrasound probe designed specifically for large animals such as cattle, horses, and donkeys. Built with an IPX7 waterproof and dustproof rating, it’s highly durable for rugged farm use. Its wireless connectivity via Wi-Fi and 5G transmission ensures real-time, high-speed image display on iPads, smartphones, and laptops. With a built-in lithium battery that lasts over 5 hours, and flexible charging options including Type-C, power banks, and car chargers, the BXL-S100 offers ultimate mobility for field diagnostics.

Equipped with over 30 preset exam modes for embryo, uterus, ovaries, backfat, and more, this probe delivers precise, species-specific imaging and measurements. It features B, 2B, 4B, B/M, and M modes, THI tissue harmonic imaging, and one-click backfat measurement. With a scanning depth ≥27cm and 60+ body markers, the BXL-S100 enables fast and accurate reproductive and health assessments. Lightweight at just 300g, easy to carry or wear on your belt or wrist, it’s the perfect ultrasound solution for mobile veterinarians and breeders who demand performance and flexibility.

  • Product Details
  • Technical Parameters
  • FAQS
  • Guarantee
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W

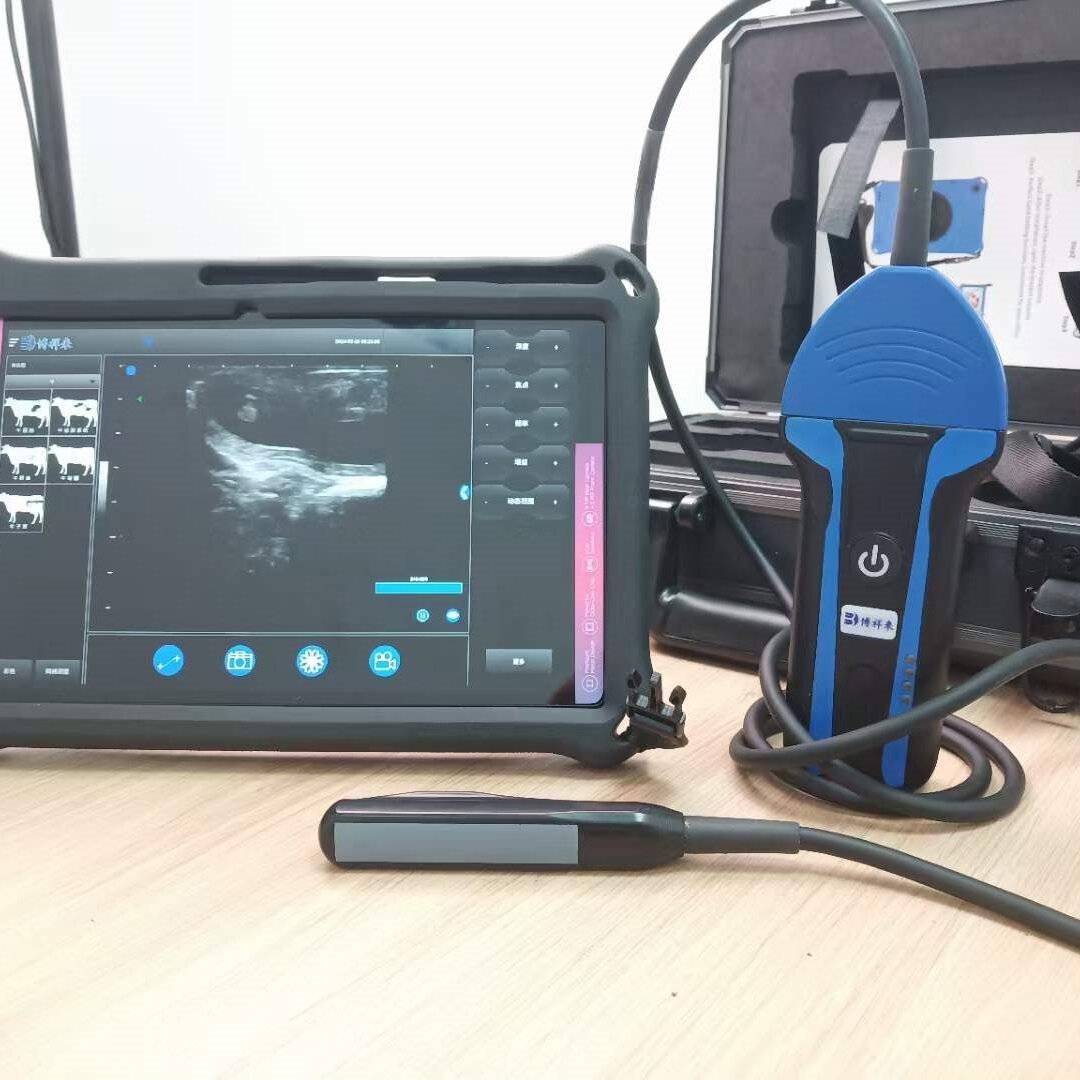

The BXL-S100 is a waterproof and dustproof wireless ultrasound system, that provides clear imaging for detecting pregnancy in cattle and horses, as well as follicle and corpus luteum development.

BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W
BXL-S100 Cattle Horse Donkey Vet Ultrasound Rectal Probe IPX7 Waterproof B&W

1. Technical parameters

1.1. The whole machine is waterproof and dustproof, waterproof level IPX7; strong and durable

1.2. Fully digital wireless animal-specific ultrasound system, suitable for scanning cattle, sheep, horses, pigs, donkeys, camels, small animals, wild animals and other animals

1.3. Built-in lithium battery, working time ≥5 hours. Type-c data cable charging, can be used for wireless charging, car mounting, fast charging, and power bank power supply

1.4. The host system comes with a Wi-Fi module to implement wireless transmission mode and 5G transmission

1.5. Wireless connection display support: iPad tablet, smartphone, laptop computer, desktop computer. Display size and resolution can be customized

1.6. Install a free APP wireless display on the monitor. The APP is compatible with operating systems: Android (Android), Windows (Microsoft)

1.7. Inspection type: The software has built-in inspection preset modes for embryos, ovaries, uteruses, urinary systems, backfat, and other parts of animals such as cattle, sheep, horses, pigs, donkeys, etc. Each mode can be selected for corresponding inspections and professional  Measurement. Corresponding host parameters have been fixed in each mode. Check mode ≥ 30 kinds

1.8. Image display mode: B, 2B, 4B, B/M, M and other display modes

1.9. Harmonic imaging: two levels; Frequency: 5-10MHz; Gain adjustment: 0-255; Dynamic range adjustment: 0-15; Transmit power: 0-3

1.10. Focus: 1-6, 11-speed adjustment; Deflection angle: -5-5, 3-speed adjustment

1.11. Scanning depth: Maximum depth of rectal linear array probe ≥ 27cm

1.12. Fragment gain: TGC eight levels adjustable, TGC can be adjusted with one click

1.13. Parameter sliding adjustment

1.14. With Chinese and English operation interface

1.15. System gray scale: 256 levels; system dynamic range ≥180dB; A/D conversion ≥12bit

1.16. Number of channels: 16

1.17. Host boot time: 1 second. The main unit has a freeze key fully digital beamformer

1.18. Host probe: 6.5MHz rectal linear array

1.19. Body markers: cattle (body markers of embryos, ovaries, uterus, urinary system, backfat, buttocks, etc.), pigs (body markers of embryos, ovaries, uterus, urinary system, backfat, buttocks, etc.), goats (Body marks of different parts of the embryo, ovary, uterus, urinary system, backfat, buttocks, etc.), body marks of different parts of animals such as buffalo, sheep, alpaca, cats, dogs, etc., no less than 60 types of body marks

1.20. Measurement and analysis: It supports basic measurements such as distance, perimeter, area, circle area, etc. It has a variety of professional animal obstetric analysis software packages and ≥30 animal obstetric measurement types. Heart measurement and other measurement functions

1.21. How to use the host: it can be buckled to the belt and can be held in hand. How to use the monitor: wrist, strap

1.22. Grid setting quick measurement function, 12 kinds of grid quick measurement display

1.23. One-click backfat thickness measurement function

1.24. Multiple system preset functions, B-mode imaging can partially zoom in/out

1.25. Storage: Static image storage and preview, you can add body marks to the image when saving the image, dynamic movie image storage and playback ≥ 255 frames, expandable

11.26. Animal report: You can edit animal ear tag numbers, various statuses, etc. When saving this animal image, you can take photos of the animal for corresponding functions

1.27. Host rated input: DC9.0V 2.22A; Adapter output: DC9.0V 2.22A

1.28. Power supply: 100-240V~0.8A Frequency: 50-60Hz

1.29. Patented product, patent number:

1.30. Weight: The weight of the whole machine is 300g (with probe)

1.31. Image frame rate: 60 frames/second

1.32. Host size: about 174×70×28 mm (length×width×height)

1.33. Software version: Animal-specific version



2 Main functions

2.1. Wireless WiFi connection function for iPad tablets, smartphones, laptops, and desktop computers

2.2. Support full screen function

2.3. Support report preview function

2.4. One-click optimization function

2.5. Functions of THI tissue harmonic imaging technology

2.6. With digital focus function

2.7. Speckle noise suppression technology function

2.8. Support spatial composite imaging function

2.9. Support two-dimensional image angle deflection function

2.10. Support parameter sliding adjustment function

2.11. 5G transmission, fast image transmission speed

2.12. Can clearly judge animal pregnancy, uterine disease, ovarian disease, and ovary detection

2.13. Small weight, easy to carry, multiple carrying methods

2.14. The operating system supports remote online free upgrade function

2.15. Parameter setting function corresponding to various body marks

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thailand, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 to 7 days

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Standard configuration:



Host                                     1 PC

flat panel display                           1 PC

Flat screen display protective case             1 PC

Shoulder strap                             1 PC

adapter                                   1 PC

Learning USB flash drive                    1 PC

Instructions/certificate/warranty card           1 PC

suitcase                                  1 PC



Optional accessories:

Wireless charger

extension rod



Warranty Period

Veterinary Ultrasonic Equipment
Main unit Probe appendix Name of main parts or accessories
18 months 12 months Flat Panel Display、Ultrasound display probe
