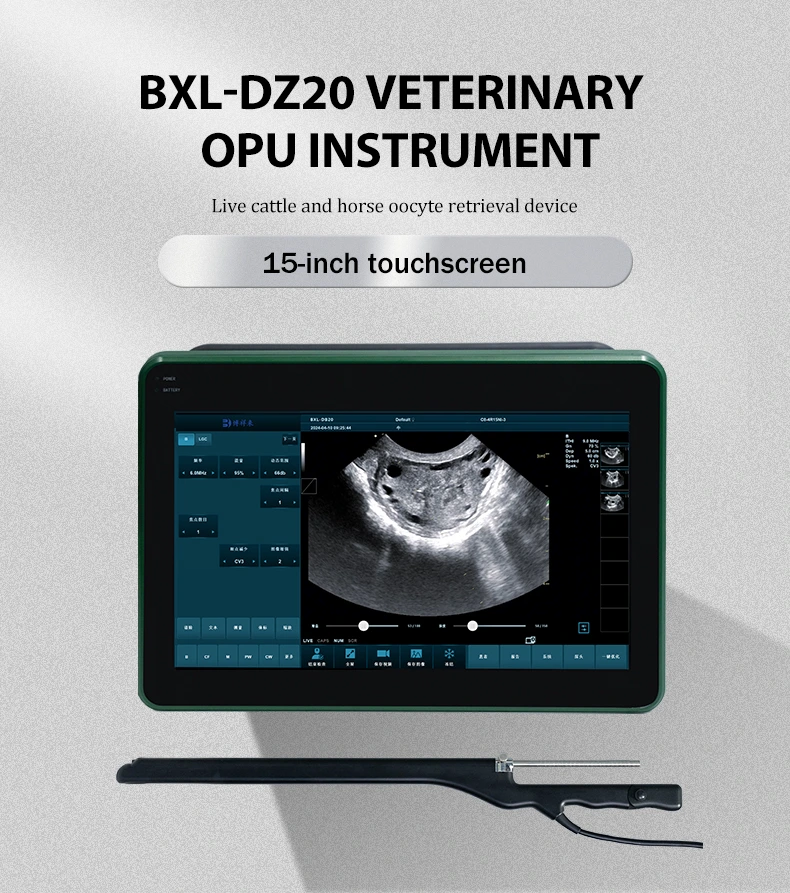

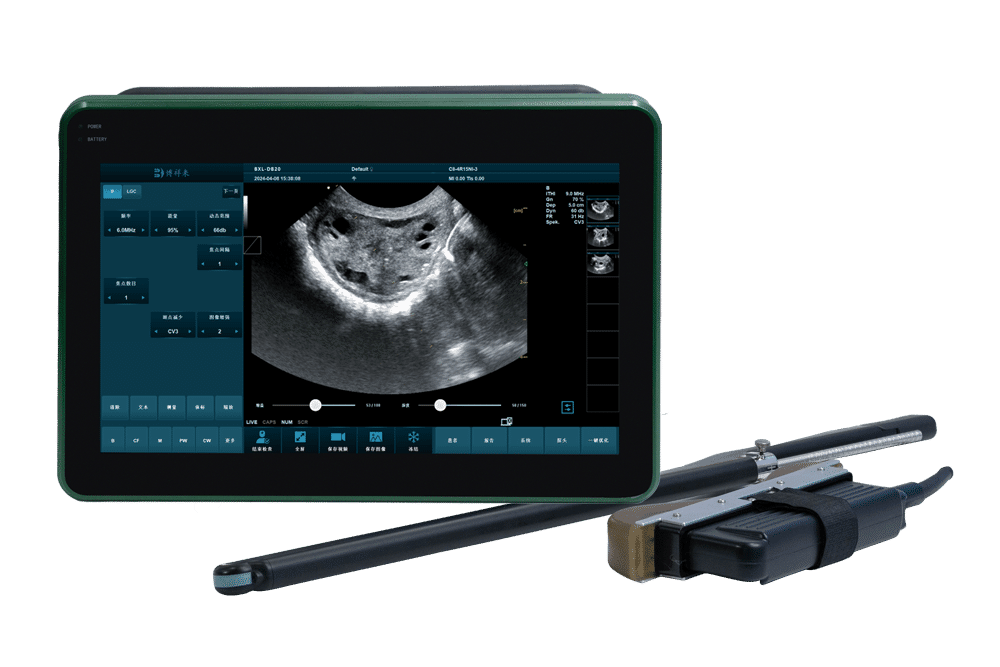

BXL-DZ20 Cow & Horse OPU Doppler Ultrasound – Veterinary Reproduction Scanner

Device name and Model: BXL-DZ20 General practice Digital Doppler Ultrasonic Diagnostic instrument for Animal



Applications: Mainly used for: pig, cow, sheep, horse, donkey, camel, dog, cat, special animal and other animal reproductive organ examination, back fat, lion eye muscle, abdominal organ, heart, small organ, tendon, transrectal examination.

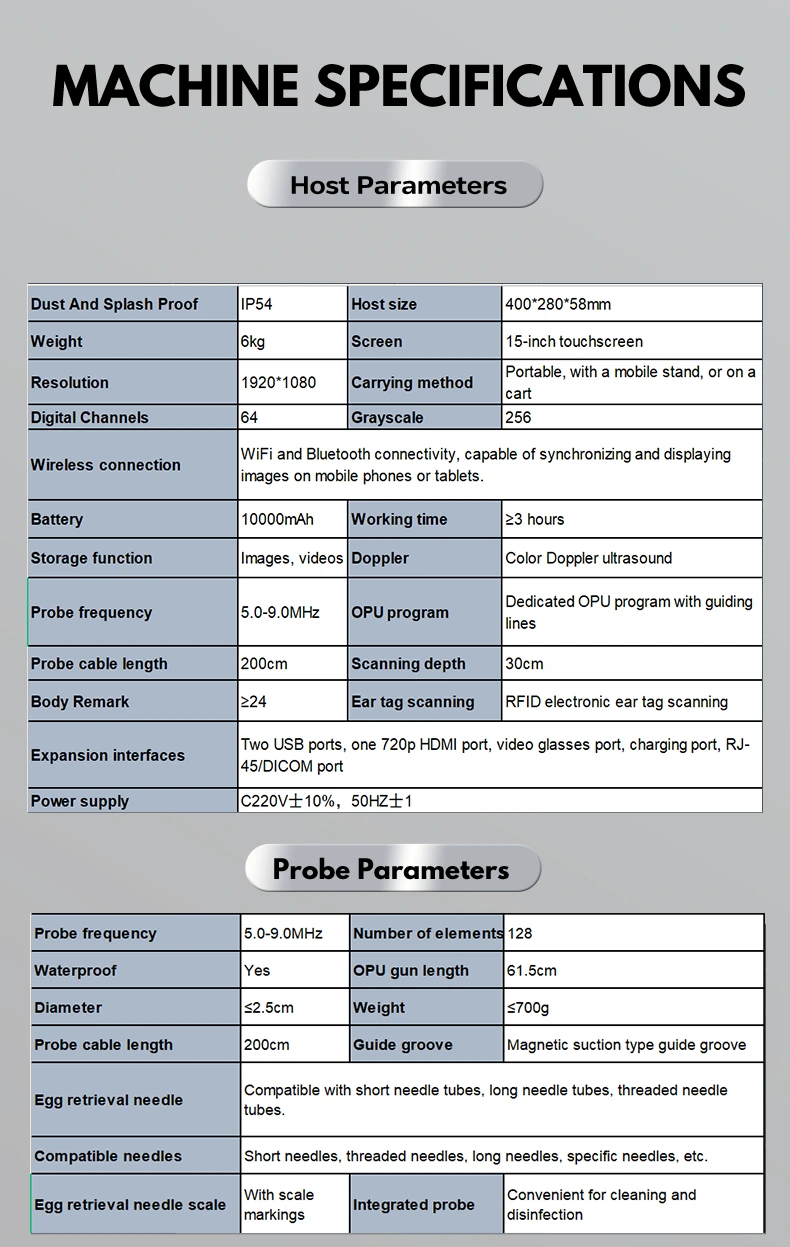

Main technical Specifications

3.1 Applicable conditions: waterproof and dustproof, IP54,anti-fall

3.2 Storage and transportation condition: from -20°C to +60°C

Ambient humidity range: 10%-95%

3.3 Device dimensions:400*280*58mm

3.4 Device weight: 6KGs

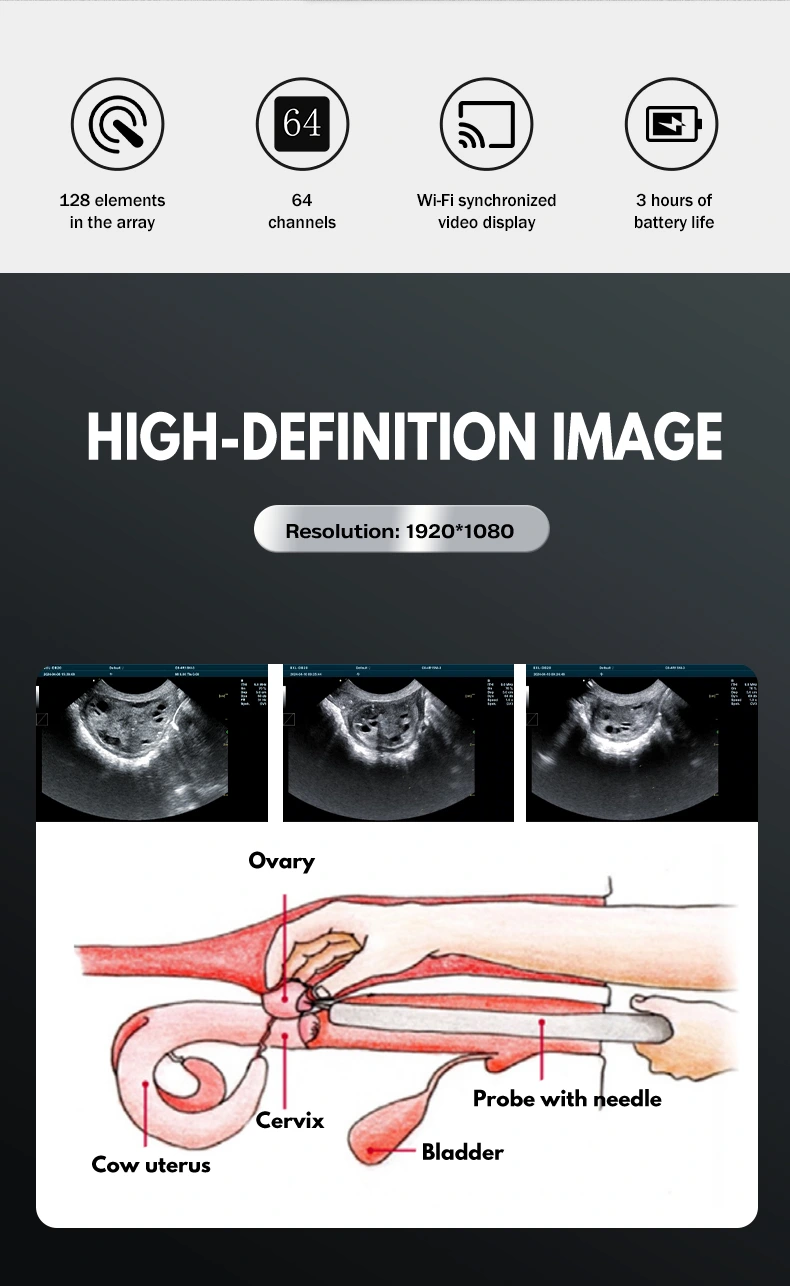

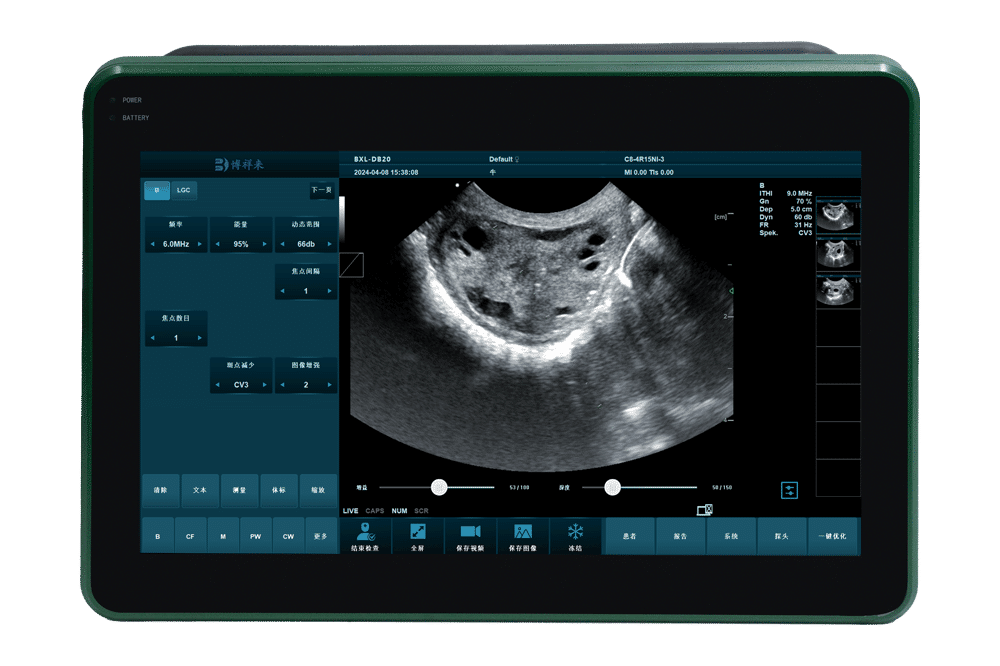

3.5 Main screen size: 15-inch touch screen Resolution: 1920*1080

3.6 Power supply: AC220V±10%，50Hz±1

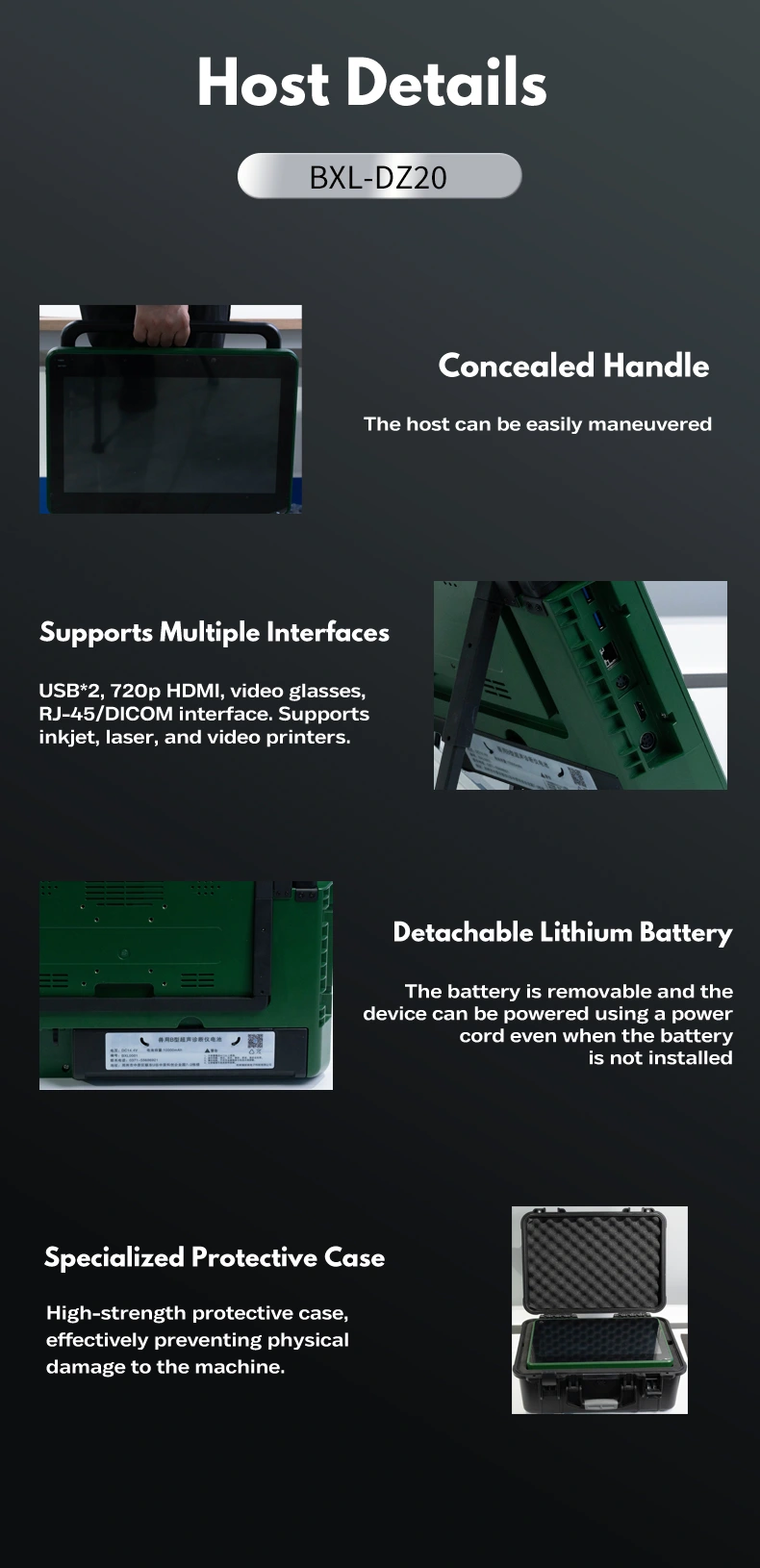

3.7 The device has a handle (can be suspended), a mobile bracket (adjustable angle), and can be suspended on a mobile cart.

3.8 Relative elevation: 90 degrees, 180 degrees, 270 degrees adjustable

3.9 Expansion interface: two USB interfaces, 720p HDMI interface, video glasses interface, charging interface, ● HDMI, video output; ● USB interface; ● RJ-45/DICOM interface; ● Support inkjet, laser, video printer

3.10 Imaging mode: Color Doppler imaging system, B, B|B. 4B, B|M (adjustable M-line position), M-Mode, Tissue Harmonic Imaging (THI), pulsed reverse harmonic imaging (iTHI), tissue-specific imaging (TSI), convex extended imaging, Linear deflection/ladders imaging, puncture enhancement, Color Flow (CF), Power Doppler (PDI), Directional Power Doppler (DPDI), Pulsed Wave Doppler (PW), Continuous Wave Doppler High Pulse Repetition Frequency (CW, HPRF), B+CF Color Dual-format Real-Time Imaging, Color Model M, B+PW, B+CF/PDI/DPDI+PW, CW, TDI

3.11 Host channel numbers: 64 channels, Windows 10

3.12 Scanning mode: digital beamforming, electronic linear array, electronic convex array, electronic micro-convex, electronic phased array, animal backfat linear array.

3.13 Scan type: normal, compound extension, etc

3.14 Full-area synthetic aperture beamformer, real-time point-by-point dynamic reception focusing technology

3.15 CF check: PRF, window width, window height, gain, frequency, color average, wall filtering, high PRF, package size, swatches, spatial filtering, line density, baseline, pulse length, energy, variance, color threshold, transparency, color priority, color flip, reduce display.

3.16 PDI check: deflection angle, PRF, window width, window height, gain, frequency, color average, wall filter, package size, energy, color palette, space filter, dynamic range, line density, pulse length, color first, color threshold, transparency, high PRF, reduced display.

3.17 PW check: angle correction, scan speed, baseline, PRF, gain, volume, frequency, deflection angle, SV length, flip, automatic tracing, use of two synchronous/three synchronous, energy, wall

filtering, signal level, dynamic range, color map, negative, signal smoothing, average spectrum, high PRF, reduced display.

3.18 Image processing: multi-beam imaging; High line density scanning (adjustable); 8 segment gain TGC control; Dynamic range: ≥120 dB; Automatic gain control; M scan speed is adjustable; PW scanning speed is adjustable; The sound power is adjustable; Controllable frame correlation; Gamma correction; The scanning range is adjustable; Up/down/left/right/black and white flip; Image enhancement, edge enhancement; Noise suppression; Spot suppression, dynamic focusing

3.19 Image rotation: 0 °, 90 °, 180 °, 270 ° rotation;

Image flip: up and down, left and right,

Image adjustment: focus adjustment, focus position and quantity adjustable. The image frame is adjusted on average and the frame is adjustable on average. The spots are reduced with 5 adjustments.

3.20 Image display: 256 grayscale scan depth: ≥30cm

3.21 Total gain: 0-100 Adjustable Left and Right Segment Gain 8 Segment Adjustable

3.22 Conventional measurements and calculations: distance, depth, area, circumference, volume, angle, narrow ratio, ratio, speed, gradient, acceleration, heart rate, histogram, anatomy, IMT measurements. Automatically generate and print reports on a variety of conventional measurements

3.23 Animal body marker: ≥24 Species

3.24 Measurement calculation software Package: Animal Specific Measurement Package

3.25 Host with stylus, wireless connection keyboard, wireless connection mouse

3.26 With one-click full screen function; System vertical screen display function

3.27 Positive and Negative Pulse Harmonic Imaging Technology and Real-time Dynamic Deformation Technology

3.28 Battery: replaceable

Working time: ≥3 hours

Battery specifications :10000mAh AC power adapter charging or operation;

Output :14.4V DC 4A

3.29 Image, video storage.

Format: AVI, JPG, BMP, PNG, DCM (DICOM), etc.

Movie playback is available.

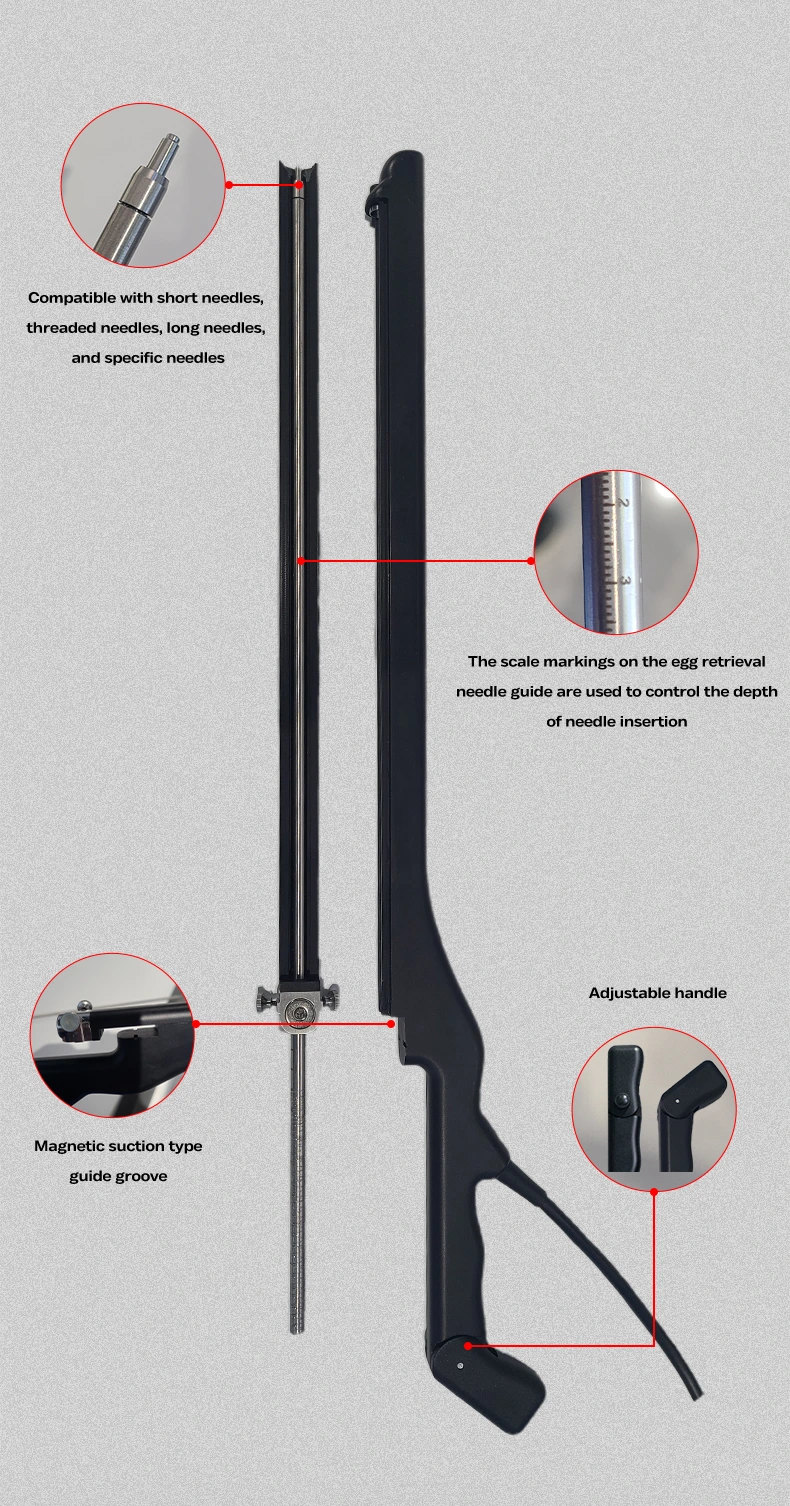

3.30 Centesis guide with Centesis line, Centesis line with scale ruler, Centesis line with center line, Centesis image enhancement processing.

3.31 Software languages: English, Chinese, French, Spanish, etc.

3.32 Brightness: -50% -50% Adjustable Contrast: -50% -50% Adjustable

3.33 Patent number: ZL202330405248.6

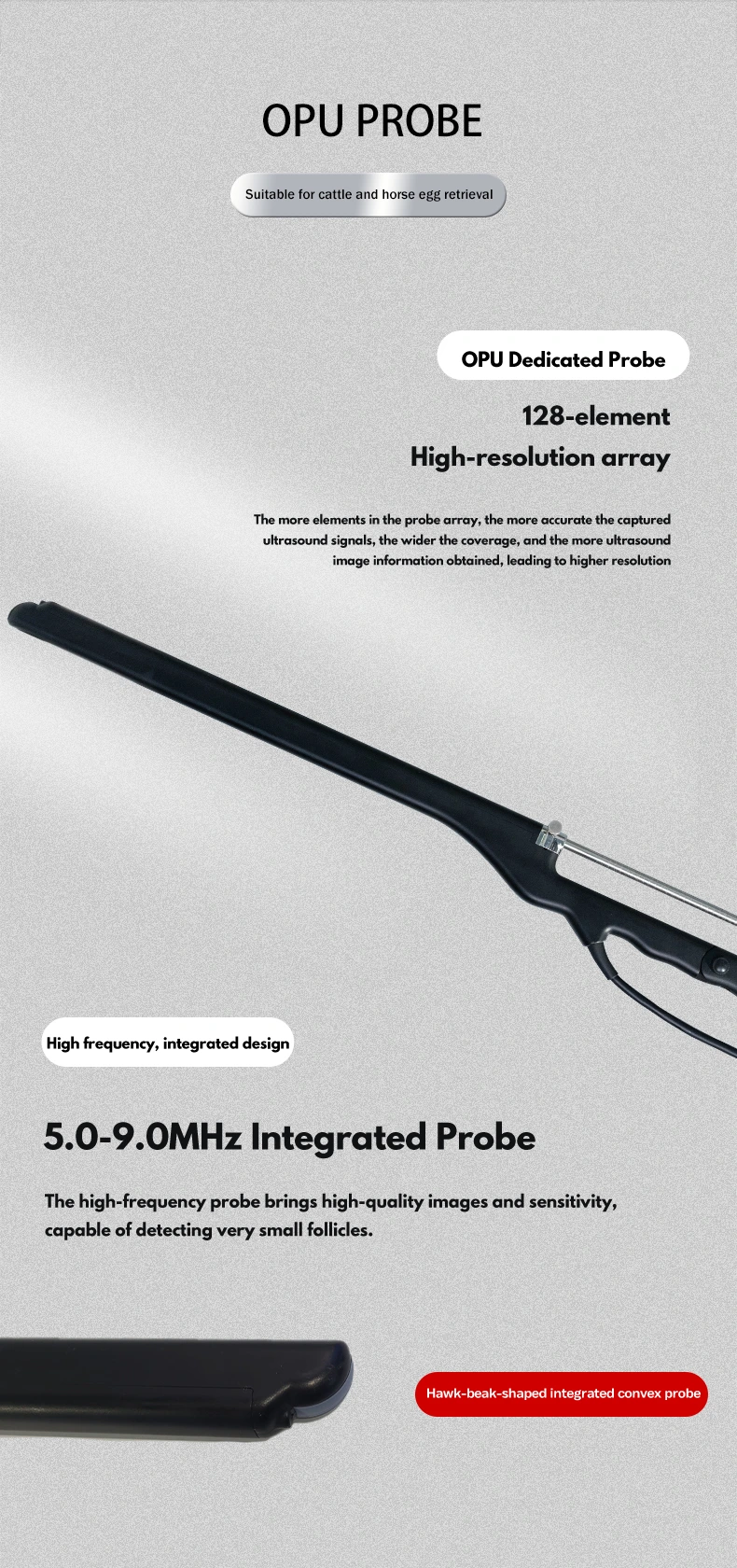

Optional probe Type and Parameters

4.1 BXL3.5L15A, 16cm Back Fat lion Eye muscle Special Probe

4.2 BXL6.5L128A，Animal Rectal Probe

4.3 BXL7.5MHZR15，7.5MHZ Micro-Convex Probe

4.4 BXL6.0MHZR15，6.0MHZ Micro-Convex Probe

4.5 BXL-P7-3/P10，Phased Array Probe

4.6 BXL7.5MHzL40，7.5MHZ High Frequency Array

4.7 BXL3.5MHz C5-2/R60，3.5MHZ Large Convex Probe

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thái Lan, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 to 7 days

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

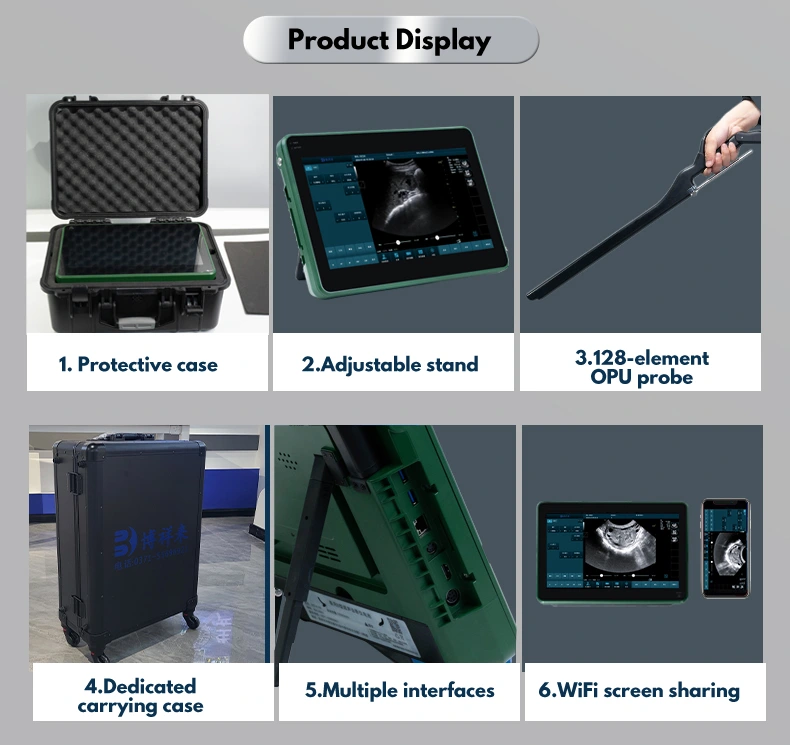

Standard Configuration

Host 1 set

Probe 1 piece

Lithium-ion battery 1 piece

Adaptor 1 piece

Stylus 1 piece

Manual book 1 set

Suitcase 1 set



Ptional Accessories

Wireless Keyboard

Wireless Mouse

ECG Performance (Optional)



Warranty Period

Veterinary Ultrasonic Equipment
Main unit	Probe	appendix	Name of main parts or accessories
18 months	12 months	–	Flat Panel Display、Ultrasound display probe
