BXL-S204 Wireless Vet Color Doppler Ultrasound Universal for All Animals

BXL-S204 Technical Specifications

1. Technical Specifications
1.1. Fully waterproof and dustproof with an IPX7 rating; robust and durable.
1.2. Fully digital, wireless Doppler color ultrasound system designed for animals, suitable for scanning cattle, sheep, horses, pigs, donkeys, camels, small animals, and wildlife.
1.3. Number of Channels: 24
1.4. Battery: Built-in lithium battery, working time ≥5 hours. Charging: Type-C data cable charging, supports wireless charging, car charging, fast charging, and power bank charging.
1.5. Ultrasound Scanning Modes: B, 2B, 4B, B/M, M, and Doppler color ultrasound (C-mode).
1.6. Doppler Color Imaging: All probes support color Doppler imaging; probe color Doppler frequency ≥3 groups.
1.7. Doppler Color Sample Frame: Adjustable angle ≥ ±15°, color gain ≥255dB.
1.8. Wireless Transmission: Built-in Wi-Fi module, supports 5G transmission.
1.9. Wireless Display Compatibility: Supports iPads, smartphones, laptops, and desktop computers; customizable screen size and resolution.
1.10. Wireless Display APP: Free APP for wireless display; compatible with Android and Windows operating systems.
1.11. Gray Scale: 256 levels, Dynamic Range: ≥180dB, A/D Conversion: ≥12bit.
1.12. TGC Adjustment: 8-segment adjustable TGC, one-touch TGC control.
1.13. Sliding Parameter Adjustment: Supports smooth parameter tuning.
1.14. Bilingual Interface: Available in Chinese and English.
1.15. Boot Time & Beam Former: Boot time: 1 second; Equipped with a digital beam former and freeze function.
1.16. Scanning Depth: Rectal convex array probe maximum depth ≥27cm.
1.17. Main Probe: 3.5MHz rectal convex array probe.
1.18. Harmonic Imaging: Two levels, Frequency: 2.9-5.0MHz, Gain Adjustment: 0-255, Dynamic Range Adjustment: 0-15, Transmission Power: 0-3.
1.19. Focus Adjustment: 3-15 levels, 13 adjustable settings.
1.20. One-Touch Image Optimization: Automatically enhances image clarity.
1.21. Measurements & Analysis: Supports basic measurements (distance, circumference, area, circular area, etc.), specialized animal OB-GYN software with ≥30 types of obstetric measurements, and multiple cardiac measurement functions.
1.22. Usage: Main unit can be clipped to a belt or handheld; display can be worn on the wrist or attached with a strap.
1.23. Grid Measurement Function: 12 preset grids for quick measurement display.
1.24. One-Touch Backfat Thickness Measurement: Quick and efficient measurement function.
1.25. Extension Rod: Screw-fastened for convenient animal examinations.
1.26. System Presets & Examination Modes: B-mode imaging allows zoom-in/zoom-out.
1.27. Examination Presets: Built-in examination modes for cattle, sheep, horses, pigs, donkeys, etc., covering embryos, ovaries, uterus, urinary system, backfat, and other examinations, with ≥30 preset examination modes and fixed system parameters.
1.28. Body Marks: Includes ≥60 predefined body marks for different animals, including cattle (embryo, ovary, uterus, urinary system, backfat, rump, etc.), pigs, goats, buffalo, sheep, alpacas, cats, dogs, and others.
1.29. Storage & Playback: Static image storage with annotations; dynamic video storage and playback of ≥255 frames, expandable.
1.30. Animal Report Management: Editable animal ID, status tracking, and photo capture for documentation.
1.31. Main Unit Input: DC 9.0V 2.22A; Adapter Output: DC 9.0V 2.22A.
1.32. Power Supply: 100-240V ~0.8A, 50-60Hz.
1.33. Patent Product: Patent number available upon request.
1.34. Weight: 250g (including probe).
1.35. Frame Rate: 60 FPS.
1.36. Main Unit Dimensions: 198 × 70 × 28 mm (L × W × H).
1.37. Software Version: Animal-specialized version.

2. Main Features
2.1. Color Doppler ultrasound technology for observing blood flow functions in various organs.
2.2. Wireless WiFi connection supports iPads, smartphones, laptops, and desktop computers.
2.3. Full-screen display support.
2.4. Report preview function.
2.5. One-touch optimization.
2.6. THI (Tissue Harmonic Imaging) technology.
2.7. Digital focusing function.
2.8. Speckle noise suppression technology.
2.9. Supports spatial compound imaging.
2.10. Supports 2D image angle steering.
2.11. Supports sliding parameter adjustment.
2.12. 5G transmission for fast image transfer.
2.13. Clear and accurate detection of pregnancy, uterine diseases, ovarian diseases, and ovarian status.
2.14. Lightweight, easy to carry, with multiple carrying options.
2.15. Operating system supports remote online free upgrades.
2.16. Various body mark parameter settings.

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thái Lan, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 to 7 days

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

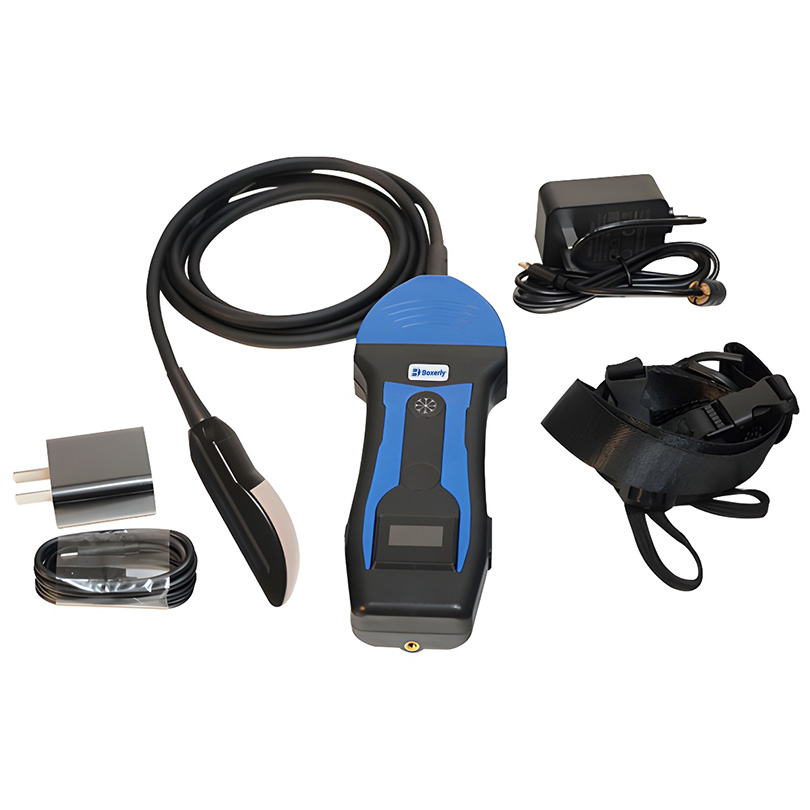

Standard Accessories

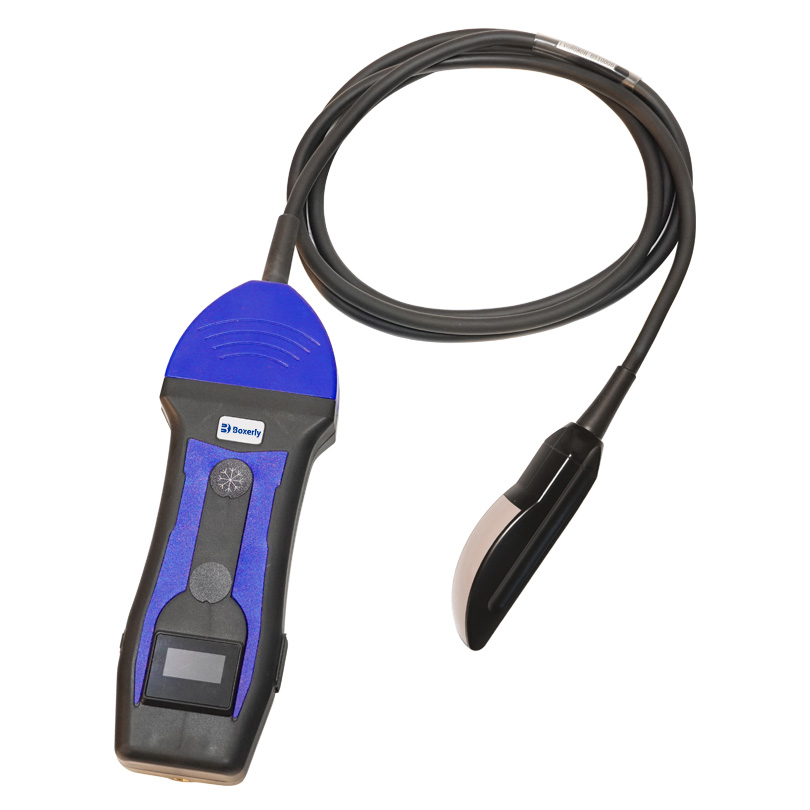

· Main Unit ×1

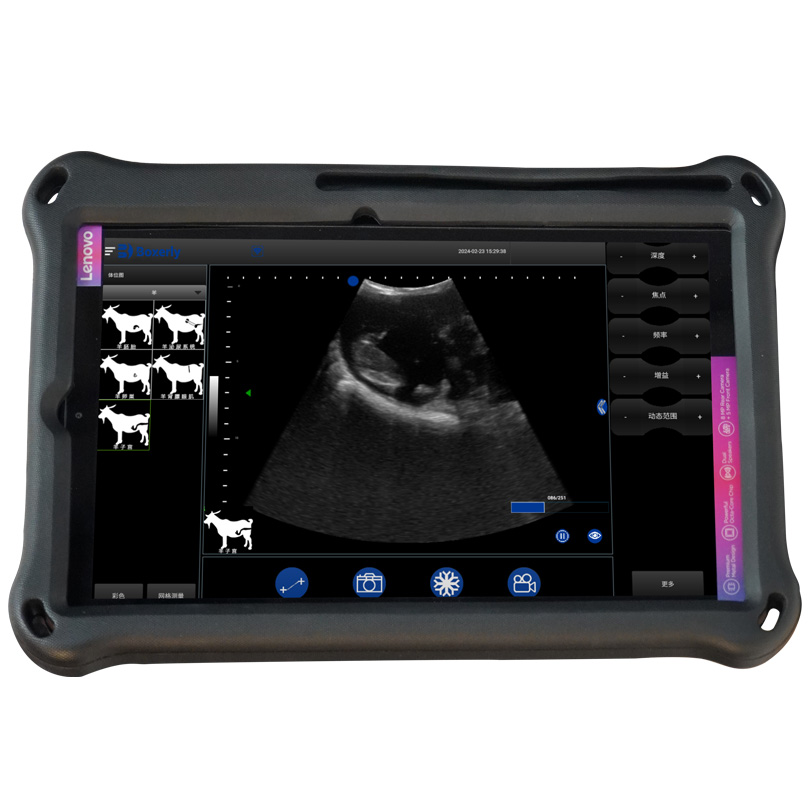

· Tablet Display ×1

· Tablet Display Protective Case ×1

· Carrying Strap ×1

· Power Adapter ×1

· Wireless Charger ×1

· Learning USB Drive ×1

· User Manual/Certificate/Warranty Card ×1 set

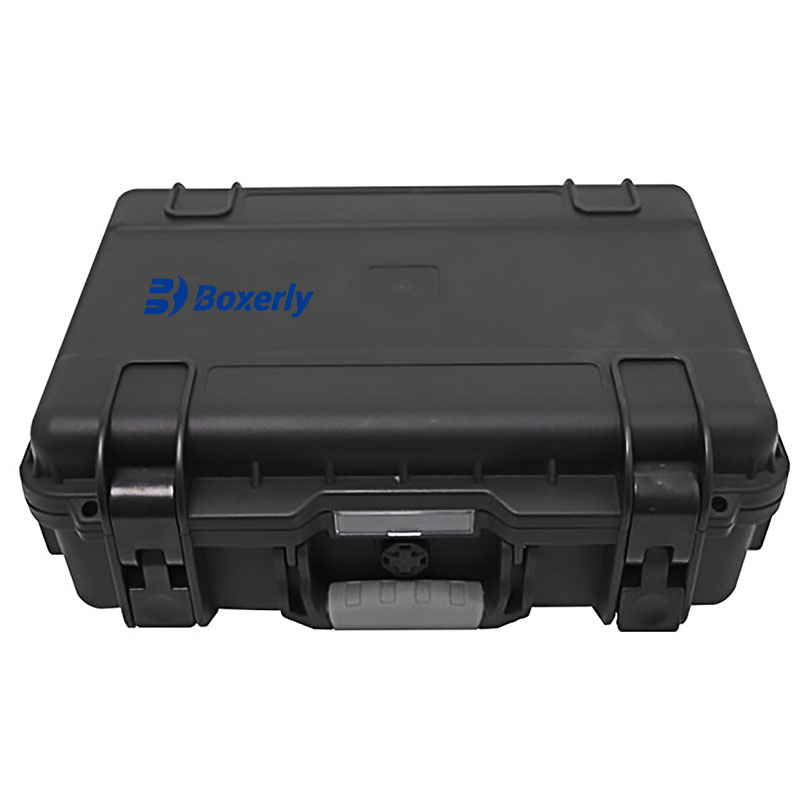

· Carrying Case ×1

· Ultrasound Gel ×1 bottle

Optional Accessories

· Extension Rod
