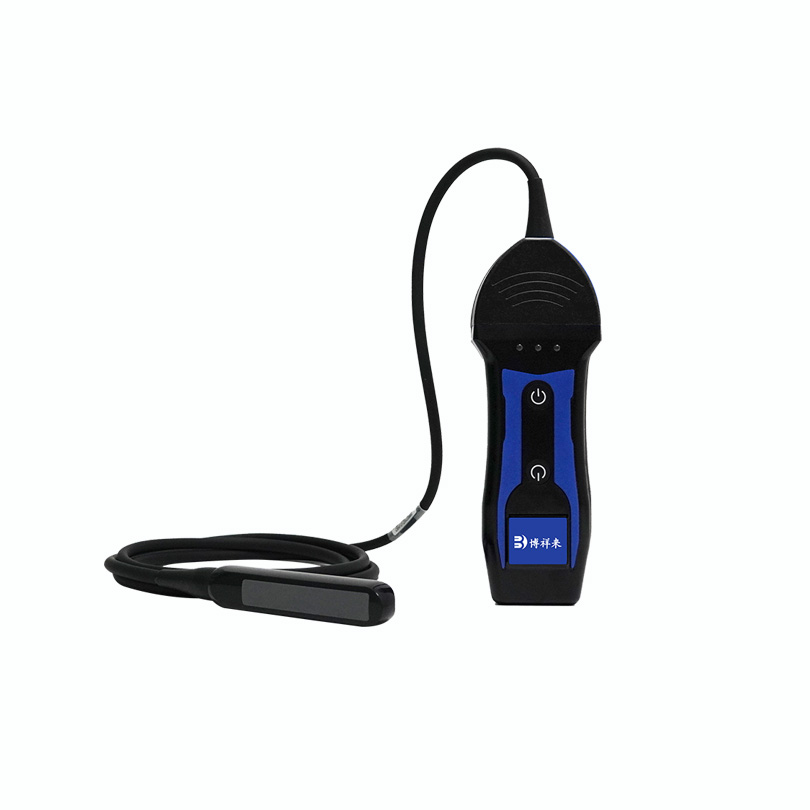

BXL-S200 Wireless Ultrasound Cows Horses Donkeys Rectal Probe HD Imaging Solution

1. Technical Specifications
1.1. Fully waterproof and dustproof with an IPX7 rating; robust and durable.
1.2. Fully digital, wireless Doppler color ultrasound system designed for animals, potrivit pentru scanarea bovinelor, oaie, Cai, Porci, Măgari, Cămile, animale mici, and wildlife.
1.3. Number of Channels: 24
1.4. Battery: Baterie cu litiu încorporată, working time ≥5 hours. Charging: Type-C cable charging, supports wireless charging, car charging, Încărcare rapidă, and power bank charging.
1.5. Ultrasound Scanning Modes: B, 2B, 4B, B/M, M, and Doppler color ultrasound (C-mode).
1.6. Doppler Color Imaging: All probes support color Doppler imaging; probe color Doppler frequency ≥3 groups.
1.7. Doppler Color Sample Frame: Adjustable angle ≥ ±15°, câștig de culoare ≥255dB.
1.8. Wireless Transmission: Built-in Wi-Fi module, supports 5G transmission.
1.9. Wireless Display Compatibility: Supports iPads, smartphones, Laptopuri, și computere desktop; customizable screen size and resolution.
1.10. Wireless Display APP: Free APP installation; compatible with Android and Windows.
1.11. Gray Scale: 256 Niveluri, Dynamic Range: ≥180dB, A/D Conversion: ≥12bit.
1.12. TGC Adjustment: 8-segment adjustable TGC, one-touch TGC control.
1.13. Sliding Parameter Adjustment: Intuitive tuning method.
1.14. Bilingual Interface: Chinese and English.
1.15. Boot Time: 1 secundă, Digital Beam Former: Equipped with freeze function.
1.16. Scanning Depth: Rectal linear array probe maximum depth ≥27cm.
1.17. Main Probe: Rectal linear array probe.
1.18. Harmonic Imaging: Two levels, Frequency: 5-10MHz, Gain Adjustment: 0-255, Dynamic Range Adjustment: 0-15, Transmission Power: 0-3.
1.19. Focal Points: Adjustable focus settings, Frequency: 5-10MHz, Gain Adjustment: 0-255, Dynamic Range Adjustment: 0-15, Transmission Power: 0-3.
1.20. One-Touch Image Optimization: Automatically enhances image clarity.
1.21. Measurements & Analysis: Supports basic measurements (distance, circumferință, zonă, circular area, etc.), specialized animal OB-GYN software with ≥30 types of obstetric measurements, and multiple cardiac measurement functions.
1.22. Usage: Main unit can be clipped to a belt or handheld; display can be worn on the wrist or attached with a strap.
1.23. Grid Measurement Function: 12 preset grids for quick measurement display.
1.24. One-Touch Backfat Thickness Measurement: Quick and efficient measurement function.
1.25. System Presets: B-mode imaging supports zoom-in/zoom-out.
1.26. Examination Presets: Built-in examination modes for cattle, oaie, Cai, Porci, Măgari, etc., covering embryo, ovar, uter, Sistemul urinar, Grăsime din spate, and other examinations, with ≥30 preset examination modes and fixed system parameters.
1.27. Body Marks: Includes ≥60 predefined body marks for different animals, including cattle (embrion, ovar, uter, Sistemul urinar, Grăsime din spate, rump, etc.), Porci, Caprine, bivol, oaie, alpacas, Pisici, Câini, and others.
1.28. Depozitare & Playback: Static image storage with annotations; dynamic video storage and playback of ≥255 frames, Extensibile.
1.29. Animal Report Management: Editable animal ID and status; image storage includes an option to capture photos of the examined animal.
1.30. Main Unit Input: DC 9.0V 2.22A; Adapter Output: DC 9.0V 2.22A.
1.31. Power Supply: 100-240V ~0.8A, 50-60Hz.
1.32. Patent Product: Patent number available upon request.
1.33. Greutate: 350g (including probe).
1.34. Frame Rate: 60 FPS.
1.35. Main Unit Dimensions: 198 × 70 × 28 mm (L × W × H).
1.36. Software Version: Animal-specialized version.

2. Main Features
2.1. Color Doppler ultrasound technology for observing blood flow function in various organs.
2.2. Wireless WiFi connection supports iPads, smartphones, Laptopuri, și computere desktop.
2.3. Full-screen display support.
2.4. Report preview function.
2.5. One-touch image optimization.
2.6. THI (Tissue Harmonic Imaging) technology.
2.7. Funcție de focalizare digitală.
2.8. Speckle noise suppression technology.
2.9. Supports spatial compound imaging.
2.10. Supports 2D image angle steering.
2.11. Supports sliding parameter adjustment.
2.12. 5G transmission for fast image transfer.
2.13. Clear and accurate detection of pregnancy, uterine diseases, ovarian diseases, and ovarian status.
2.14. Lightweight, Ușor de transportat, with multiple carrying options.
2.15. Operating system supports remote online free upgrades.
2.16. Various body mark parameter settings.

Q1:Cine suntem?

A1: Suntem un producător de frunte de ultrasunete animale în China. Am ocupat o cotă semnificativă din piața chineză de la înființarea noastră în 2014. Produsele noastre au fost exportate în zeci de țări din Europa și America de Sud pentru o lungă perioadă de timp. Produsele noastre au o bună reputație pentru fiabilitatea lor excelentă și prețurile scăzute.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: Care este timpul dvs. de livrare?

A5: Cantitate mică (Mai puţin 10 Seturi) poate fi expediat la clent-urile noastre în termen de 3 zile lucrătoare pentru majoritatea modelelor noastre, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thailanda, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 spre 7 Zile

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Standard Accessories

· Main Unit ×1

· Tablet Display ×1

· Tablet Display Protective Case ×1

· Carrying Strap ×1

· Power Adapter ×1

· Wireless Charger ×1

· Learning USB Drive ×1

· User Manual/Certificate/Warranty Card ×1 set

· Carrying Case ×1

· Ultrasound Gel ×1 bottle

Optional Accessories

· Extension Rod

Perioada de garanție
