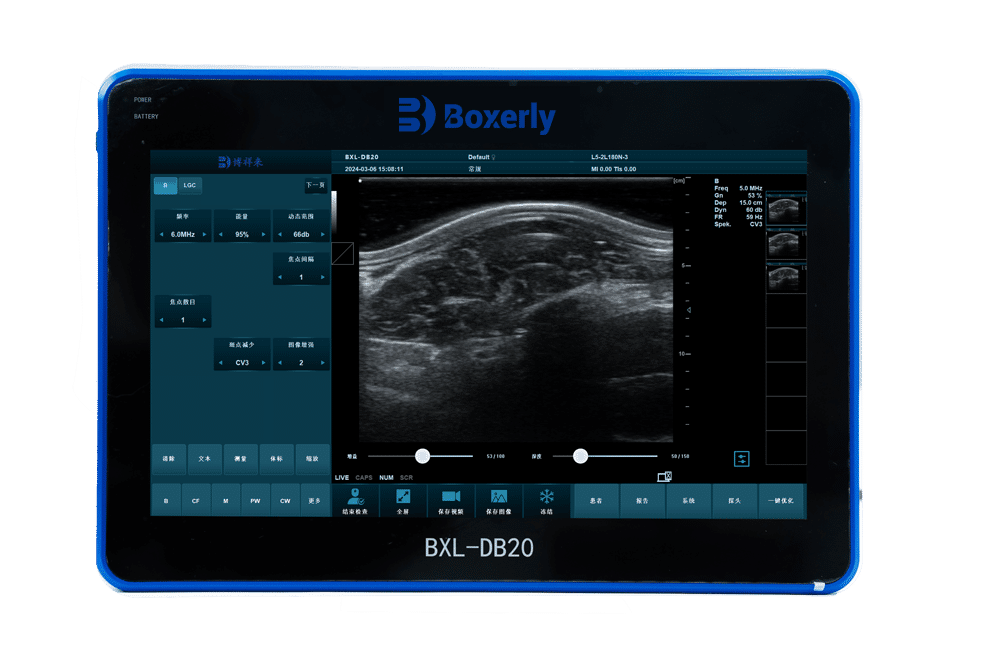

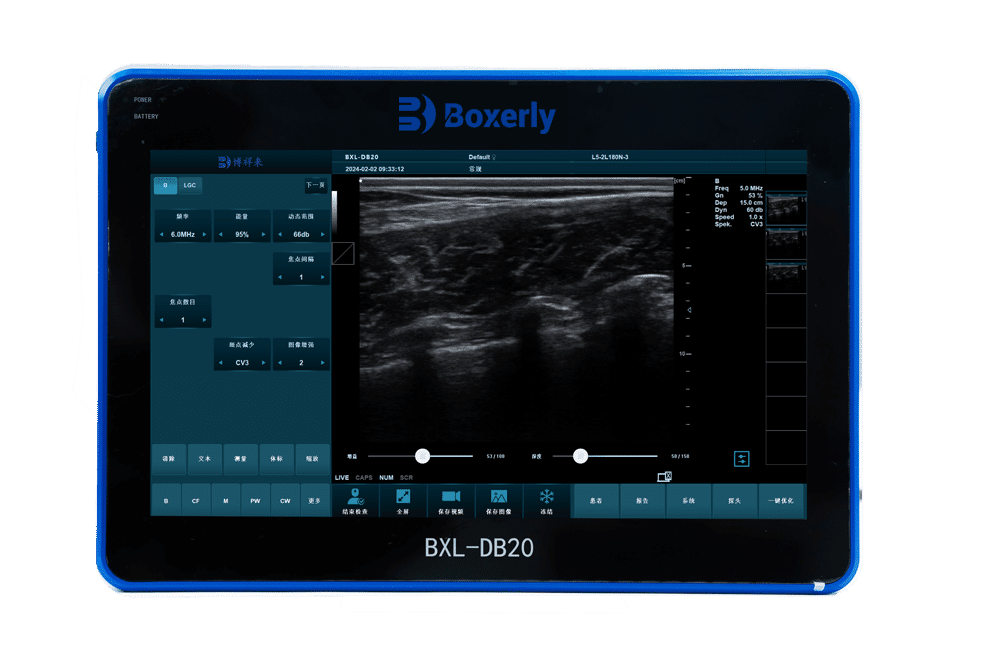

BXL-DB20 Pigs Cattle Sheeps Backfat Ultrasound Device | Breeding-Specific Equipment

Main Technical Specifications

1.1 Applicable conditions: waterproof and dustproof, IP54,anti-fall

1.2 Storage and transportation condition: from -20°C to +60°C

Ambient humidity range: 10%-95%

1.3 Power supply: AC220V±10%，50Hz±1

1.4 Device dimensions:400*280*58mm

1.5 Device weight: 6KGs

1.6 Main screen size: 15-inch

Touch screen Resolution: 1920*1080

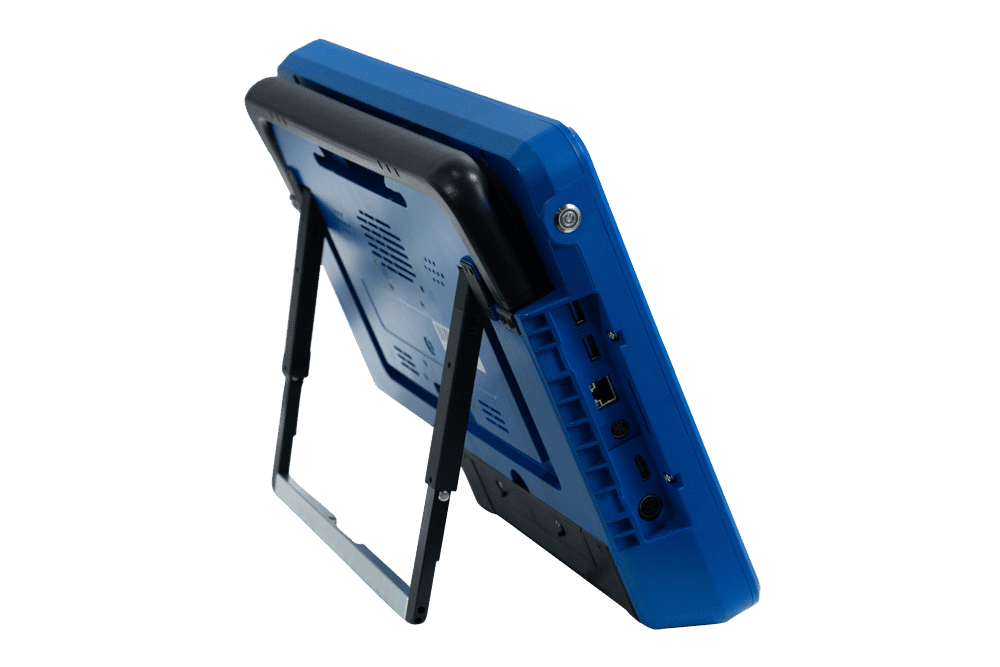

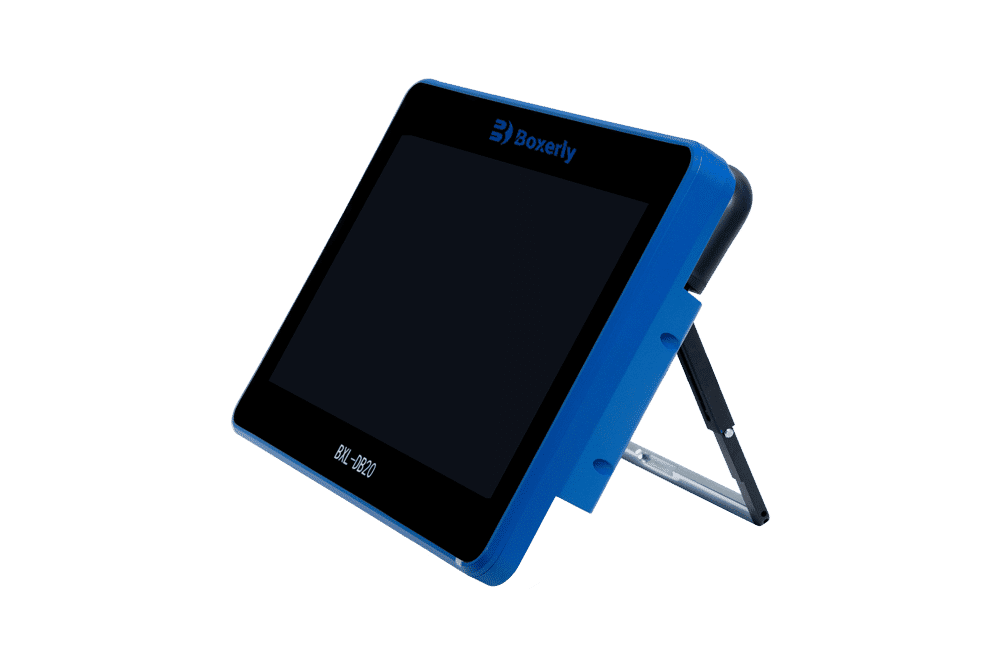

1.7 The device has a handle (can be suspended), a mobile bracket (adjustable angle), and can be suspended on a mobile cart.

1.8 Digital Channels:64 Channels

1.9 Imaging mode: Color Doppler imaging system, B, B|B. 4B, B|M (adjustable M-line position), M-Mode, Tissue Harmonic Imaging (THI), pulsed reverse harmonic imaging (iTHI), tissue-specific imaging (TSI), convex extended imaging, Linear deflection/ladders imaging, puncture enhancement, Color Flow (CF), Power Doppler (PDI), Directional Power Doppler (DPDI), Pulsed Wave Doppler (PW), Continuous Wave Doppler High Pulse Repetition Frequency (CW, HPRF), B+CF Color Dual-format Real-Time Imaging, Color Model M, B+PW, B+CF/PDI/DPDI+PW, CW, TDI

1.10 Expansion interface: two USB interfaces, 720p HDMI interface, video glasses interface, charging interface, ● HDMI, video output; ● USB interface; ● RJ-45/DICOM interface; ● Support inkjet, laser, video printer

1.11 Scanning mode: digital beamforming, electronic linear array, electronic convex array, electronic micro-convex, electronic phased array, animal backfat linear array.

1.12 Scan depth: ≥30cm

1.13 Image processing: multi-beam imaging; High line density scanning (adjustable); 8 segment gain TGC control; Dynamic range: ≥120 dB; Automatic gain control; M scan speed is adjustable; PW scanning speed is adjustable; The sound power is adjustable; Controllable frame correlation; Gamma correction; The scanning range is adjustable; Up/down/left/right/black and white flip; Image enhancement, edge enhancement; Noise suppression; Spot suppression, dynamic focusing

1.14 Image display: 256 grayscale

1.15 Total Gain: 0-100 Adjustable Left and Right Segment Gain 8 Segment Adjustable

1.16 Conventional measurements and calculations: distance, depth, area, circumference, volume, angle, narrow ratio, ratio, speed, gradient, acceleration, heart rate, etc.

1.17 Animal body marker: ≥24 Species

Measurement calculation software Package: Animal Specific Measurement Package

1.18 Wireless WiFi connection and Bluetooth connection wirelessly connect mobile phones and IPad synchronization display images with wireless remote control. RFID Electronic Ear Tag Scanning

1.19 Efficient lithium battery: replaceable working time: ≥3 hours battery Specifications :10000mAh AC power adapter charging or operation; Output :14.4V DC 4A

1.20 Image, video storage. Format: AVI, JPG, BMP, PNG, DCM (DICOM), etc. Movie playback is available. Animal back fat image can be stored in various parts

1.21 Centesis guide with Centesis line, Centesis line with scale ruler, Centesis line with center line, Centesis image enhancement processing.

1.22 Built-in professional OPU system program, can set the location direction of the oocyte retrieval needle. There are oocyte retrieval needle guide line, oocyte retrieval needle guide line with scale ruler, oocyte retrieval needle guide line with center line, oocyte retrieval needle puncture image enhancement processing.

1.23 Built-in professional back fat lion eye muscle storage image system, can be based on different animal inspection of different parts of the storage back fat Lion eye muscle image

1.24 Image rotation: 0 °, 90 °, 180 °, 270 ° rotation; Image flip: up and down.

1.25 Scan type: normal, compound extension, etc

1.26 Brightness: -50% -50% Adjustable Contrast: -50% -50% Adjustable

1.27 Host with stylus, wireless connection keyboard, wireless connection mouse

1.28 Optional probe type: Animal OPU special micro-convex probe, animal special back fat linear arrar probe and other probes

1.29 Mage adjustment: Focus adjustment, focus position and quantity adjustable. The image frame is adjusted on average and the frame is adjustable on average. The spots are reduced with 5 adjustments.

1.30 Image Editing: Can edit stored images

1.31 Software Version: Animal Specific Version

1.32 Patent number:ZL 202330405248.6

Probe Type and Parameters

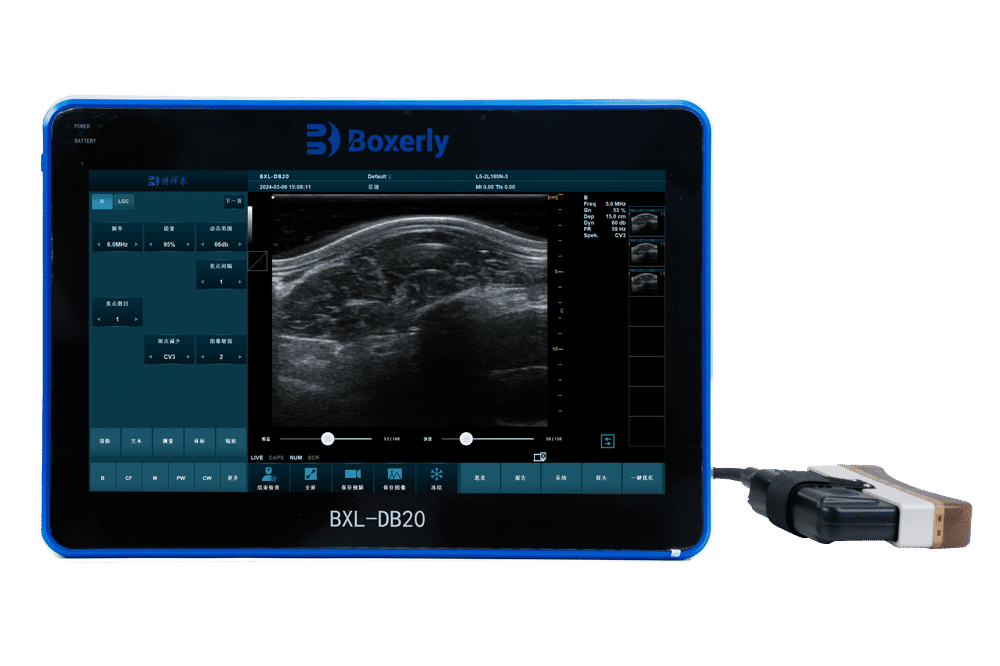

1 Animal Back Fat Lion Eye Muscle Probe

1.1 Frequncy: 2.5-6MHz 18cm long linear array probe

1.2 Number of probe array elements: 128

1.3 Probe cable length: 200cm (standard), length can be customized

1.4 Probe scan depth up to 30cm

Animal Back Fat lion Eye muscle Probe Features

1 18cm long professional design of back fat lion eye muscle probe, can fully test a variety of animal back fat lion eye muscle

2 Probe scan depth up to 30cm, can be a good appearance of large animals lion eye muscle

3 High frequency probe, high quality Doppler color ultrasound image, can determine the muscular and flesh level of good identification

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thái Lan, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 to 7 days

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Standard Configuration

Host 1 set

Probe 1 piece

Lithium-ion battery 1 piece

Adaptor 1 piece

Stylus 1 piece

Manual book 1 set

Suitcase 1 set

Optional Accessories

Ultrasound cart

Wireless keyboard

Wireless mouse

Negative pressure pump

Thermostat

Warranty Period

Veterinary Ultrasonic Equipment
Main unit	Probe	appendix	Name of main parts or accessories
18 months	12 months	–	Flat Panel Display、Ultrasound display probe
