BXL-S103 Sheep Wireless Rectal Ultrasound Scanner IPX7 | Vet B/W Imaging Device

BXL-S103 Technical Specifications

• Working Time: ≥5 hours

• Wireless Transmission: Supported

• Image Display Modes: B, 2B, 4B, B/M, M

• Harmonic Imaging: Two levels

• Frequency: 5–10 MHz

• Gain Adjustment: 0–255

• Dynamic Range Adjustment: 0–15

• Transmit Power: 0–3

• Scanning Depth: Maximum depth of rectal linear array probe ≥27 cm

• Gain: Eight-stage adjustable

• System Language: Chinese, English

• Grayscale: 256 levels

• Channels: 16

• Position Markers: ≥60

• Measurement: One-key measurement of backfat thickness

• Storage:

  • Storage and preview of static images

  • Storage and playback of dynamic cine images ≥255 frames (expandable)

• Power Supply: 100–240V~0.8A

• Weight: 300g (including probe)

• Image Frame Rate: 60 frames per second

• Host Size: 174 × 70 × 28 mm

• Optional Configuration: 6.5 MHz sheep rectal probe

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thái Lan, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 đến 7 Ngày

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Standard Configuration

• Host: 1 set

• Probe: 1 piece

• Lithium-ion battery: 1 piece

• Adaptor: 1 piece

• Stylus: 1 piece

• Manual book: 1 set

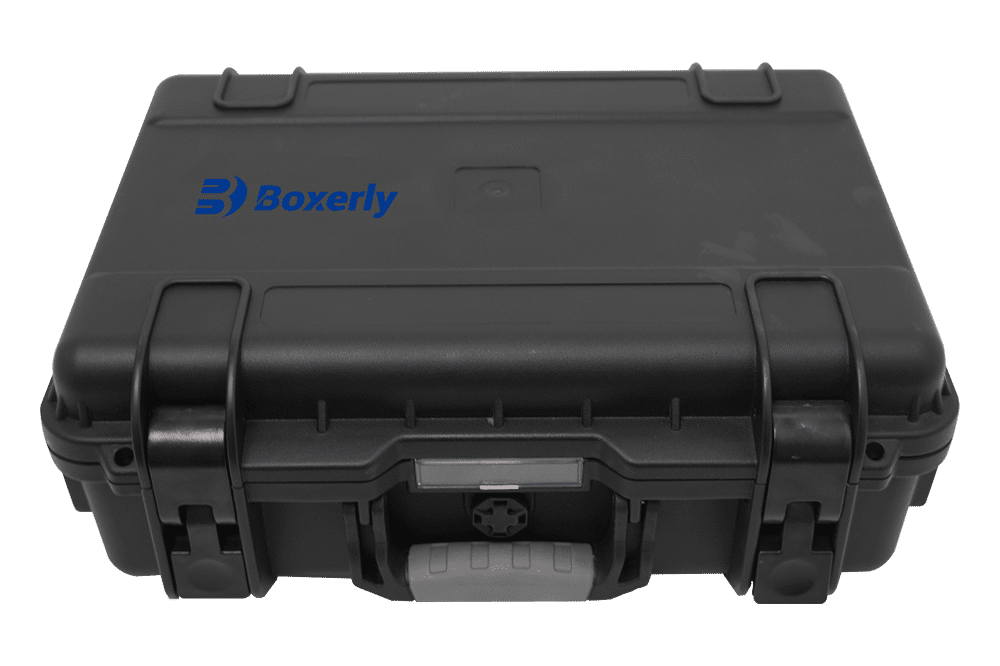

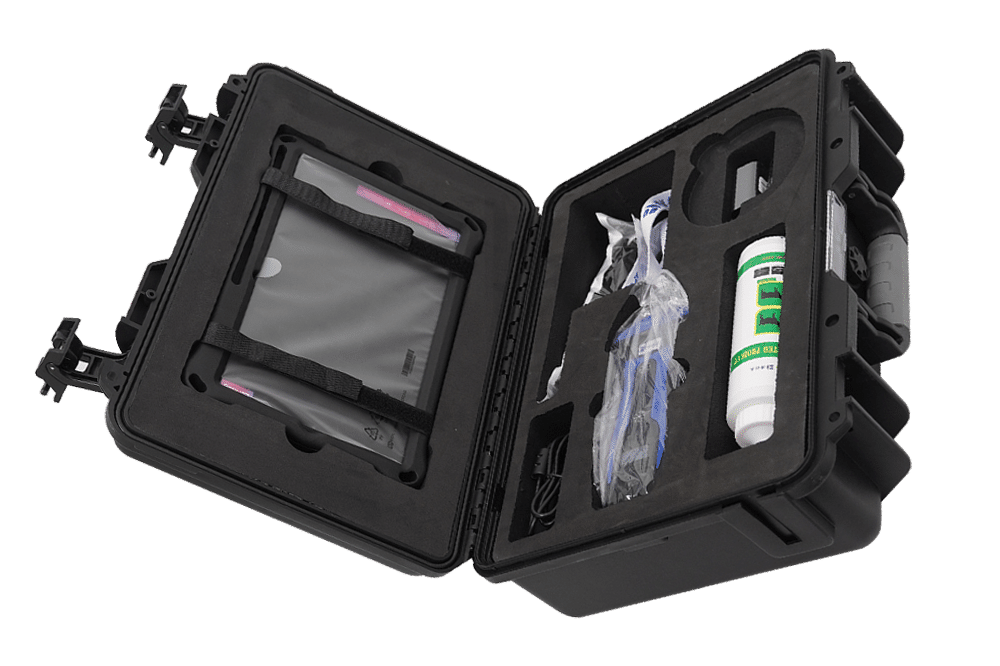

• Suitcase: 1 set

Optional Accessories

• Ultrasound cart

• Wireless keyboard

• Wireless mouse

• Negative pressure pump

• Thermostat

Warranty Period
