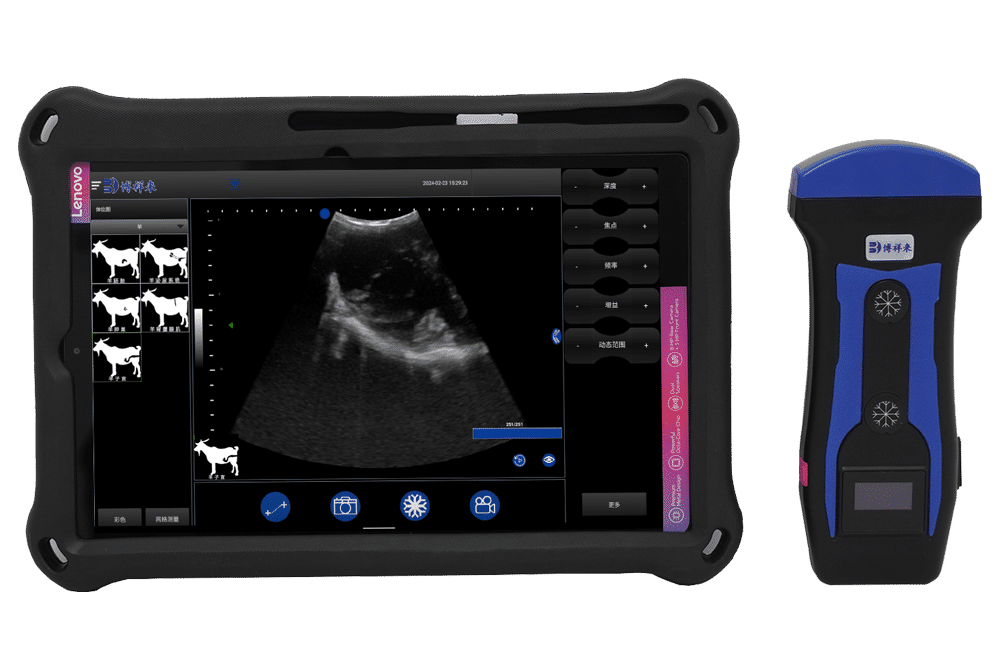

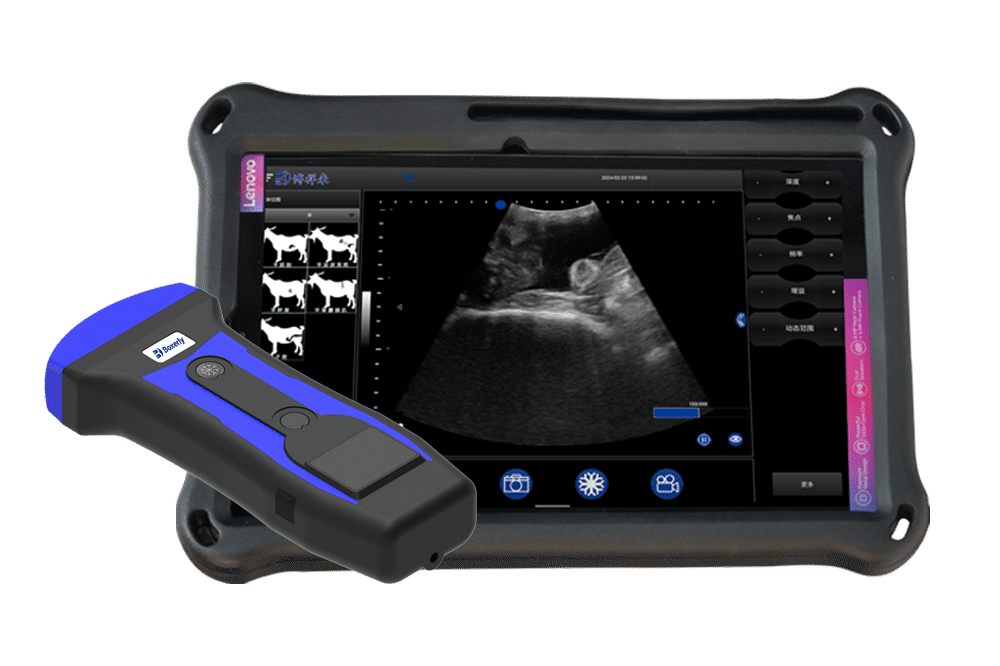

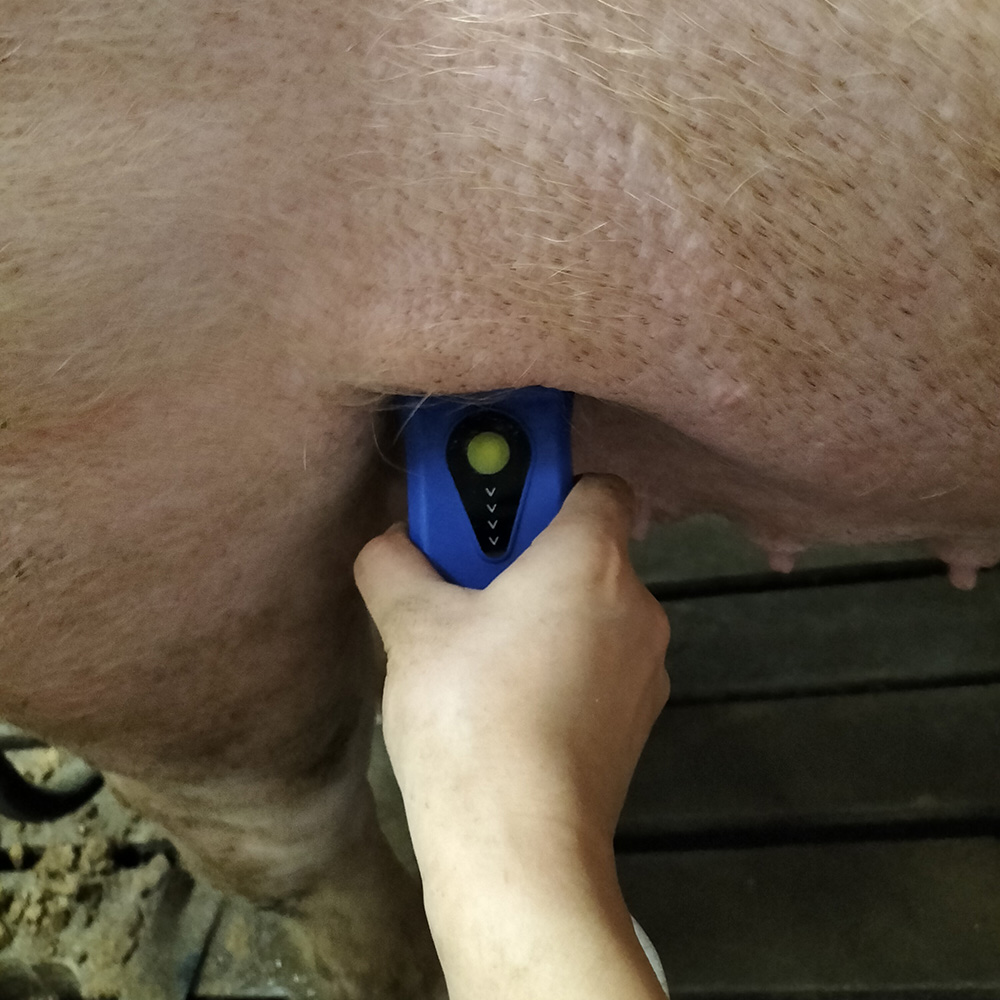

BXL-S201 Pig Sheep Livestock Abdominal Ultrasound Probe | Convex Veterinary Scanner

Technical Specifications
1.1. Fully waterproof and dustproof with an IPX7 rating; robust and durable.
1.2. Fully digital, wireless Doppler color ultrasound system for animals, suitable for cattle, sheep, horses, pigs, donkeys, camels, small animals, and wildlife.
1.3. Channels: 24
1.4. Battery: Built-in lithium battery, working time ≥5 hours. Charging: Type-C cable charging, supports wireless charging, car charging, fast charging, and power bank charging.
1.5. Ultrasound Scanning Modes: B, 2B, 4B, B/M, M, and Doppler color ultrasound (C-mode).
1.6. Doppler Color Imaging: All probes support color Doppler imaging; probe color Doppler frequency ≥3 groups.
1.7. Doppler Color Sample Frame: Adjustable angle ≥ ±15°, color gain ≥255dB.
1.8. Wireless Transmission: Built-in Wi-Fi module, supports 5G transmission.
1.9. Wireless Display Compatibility: iPads, smartphones, laptops, desktop computers; customizable screen size and resolution.
1.10. Wireless Display APP: Free APP installation; compatible with Android and Windows.
1.11. Gray Scale: 256 levels, Dynamic Range: ≥180dB, A/D Conversion: ≥12bit.
1.12. TGC Adjustment: 8-segment adjustable TGC, one-touch TGC control.
1.13. Sliding Parameter Adjustment: Intuitive tuning method.
1.14. Bilingual Interface: Chinese and English.
1.15. Boot Time: 1 second, Digital Beam Former: Equipped with freeze function.
1.16. Scanning Depth: Convex probe maximum depth ≥27cm.

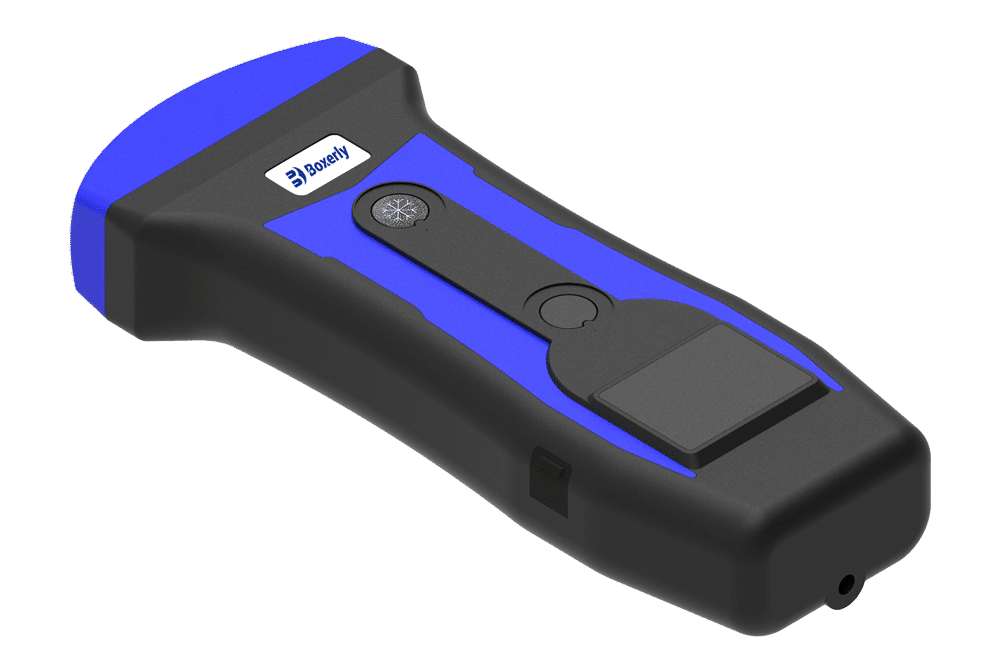

1.17. Main Probe: 3.5MHz convex probe.
1.18. Harmonic Imaging: Two levels, Frequency: 2.9-5.0MHz, Gain Adjustment: 0-255, Dynamic Range Adjustment: 0-15, Transmission Power: 0-3.
1.19. Focal Points: 3-15 levels, 13 adjustable positions.
1.20. One-Touch Image Optimization: Automatically enhances image clarity.
1.21. Measurements & Analysis: Supports basic measurements (distance, circumference, area, circular area, etc.), specialized animal OB-GYN software with ≥30 types of obstetric measurements, and multiple cardiac measurement functions.
1.22. Usage: Main unit can be clipped to a belt or handheld; display can be worn on the wrist or attached with a strap.
1.23. Grid Measurement Function: 12 preset grids for quick measurement display.
1.24. One-Touch Backfat Thickness Measurement: Quick and efficient measurement function.
1.25. Extension Rod: Screw-fastened for convenient animal examinations.
1.26. System Presets: B-mode imaging supports zoom-in/zoom-out.
1.27. Examination Presets: Built-in examination modes for cattle, sheep, horses, pigs, donkeys, etc., covering embryo, ovary, uterus, urinary system, backfat, and other examinations, with ≥30 preset examination modes and fixed system parameters.
1.28. Body Marks: ≥60 predefined body marks for different animals, including cattle, pigs, sheep, alpacas, cats, dogs, etc.
1.29. Storage & Playback: Static image storage with annotations; dynamic video storage and playback of ≥255 frames, expandable.
1.30. Animal Report Management: Editable animal ID and status; image storage includes an option to capture photos of the examined animal.
1.31. Main Unit Input: DC 9.0V 2.22A; Adapter Output: DC 9.0V 2.22A.
1.32. Power Supply: 100-240V ~0.8A, 50-60Hz.
1.33. Patent Product: Patent number available upon request.
1.34. Weight: 250g (including probe).
1.35. Frame Rate: 60 FPS.
1.36. Main Unit Dimensions: 170 × 70 × 28 mm (L × W × H).
1.37. Software Version: Animal-specialized version.

Main Features
2.1. Color Doppler Ultrasound Technology: Allows observation of blood flow functions in various organs.
2.2. Wireless WiFi Connection: Compatible with iPads, smartphones, laptops, and desktop computers.
2.3. Full-Screen Support: Enhances image visualization.
2.4. Report Preview Function: Enables reviewing reports before finalizing.
2.5. One-Touch Optimization: Automatically optimizes image quality.
2.6. THI (Tissue Harmonic Imaging): Provides enhanced image clarity.
2.7. Digital Focusing: Enhances sharpness and accuracy.
2.8. Speckle Noise Suppression: Reduces image noise for better clarity.
2.9. Spatial Compound Imaging: Improves image resolution and quality.
2.10. 2D Image Angle Steering: Adjustable for better visualization.
2.11. Sliding Parameter Adjustment: Allows smooth parameter tuning.
2.12. 5G Transmission: Ensures fast and stable image transfer.
2.13. Reproductive Health Assessment: Accurately detects pregnancy, uterine diseases, and ovarian conditions.
2.14. Lightweight & Portable: Compact design with multiple carrying options.
2.15. Remote Software Upgrades: Supports free online updates.
2.16. Customizable Body Marks & Parameters: Allows tailored settings for different animals.

Q1:Who are we?

A1: We are a leading manufacturer of animal ultrasound in China. We have occupied a significant share of the Chinese market since our establishment in 2014. Our products have been exported to dozens of countries in Europe and South America for a long time. Our products have good reputation for their excellent reliability and low prices.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, Chinese, etc.

Q5: what is your delivery time?

A5: Small quantity (less than 10 sets) can ship to our clents within 3 working days for most of our models, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, etc.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: Mexico, Colombia, Argentina, India, Thái Lan, Pakistan, Peru, Uzbekistan, Sweden

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 đến 7 Ngày

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Standard Accessories

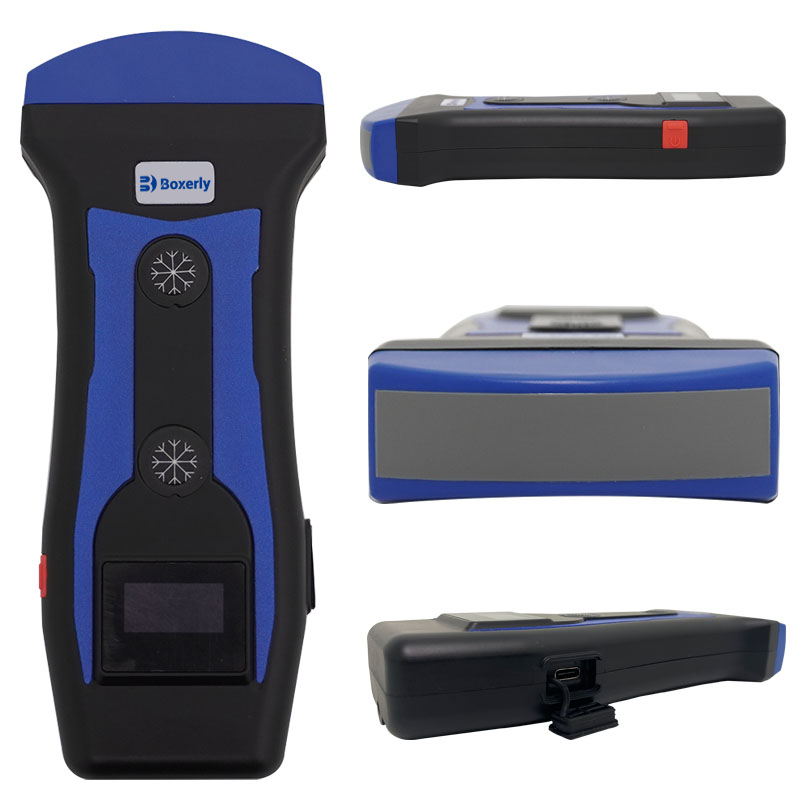

· Main Unit ×1

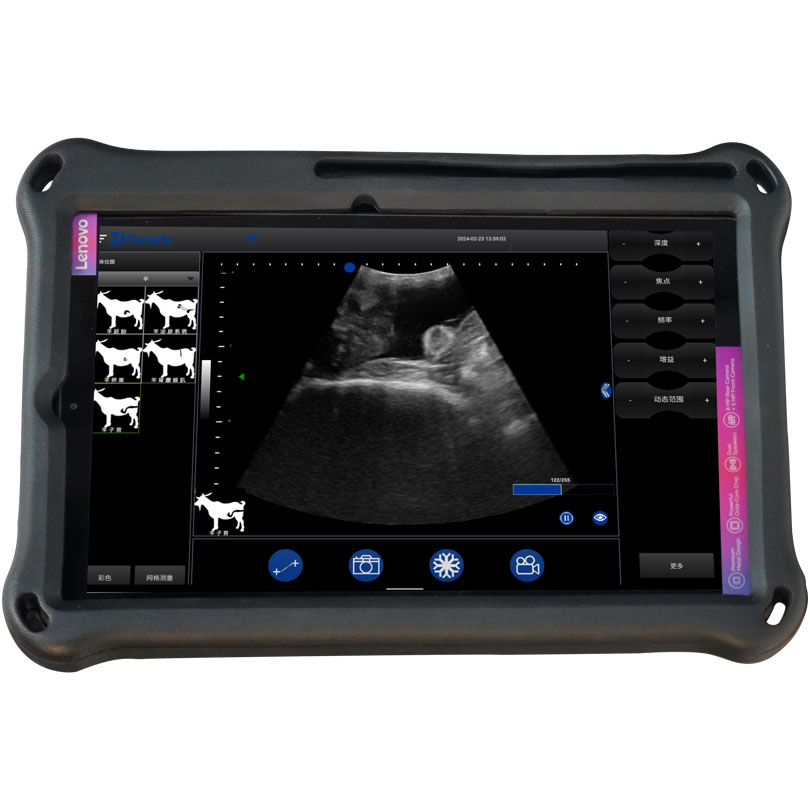

· Tablet Display ×1

· Tablet Display Protective Case ×1

· Carrying Strap ×1

· Power Adapter ×1

· Wireless Charger ×1

· Learning USB Drive ×1

· User Manual/Certificate/Warranty Card ×1 set

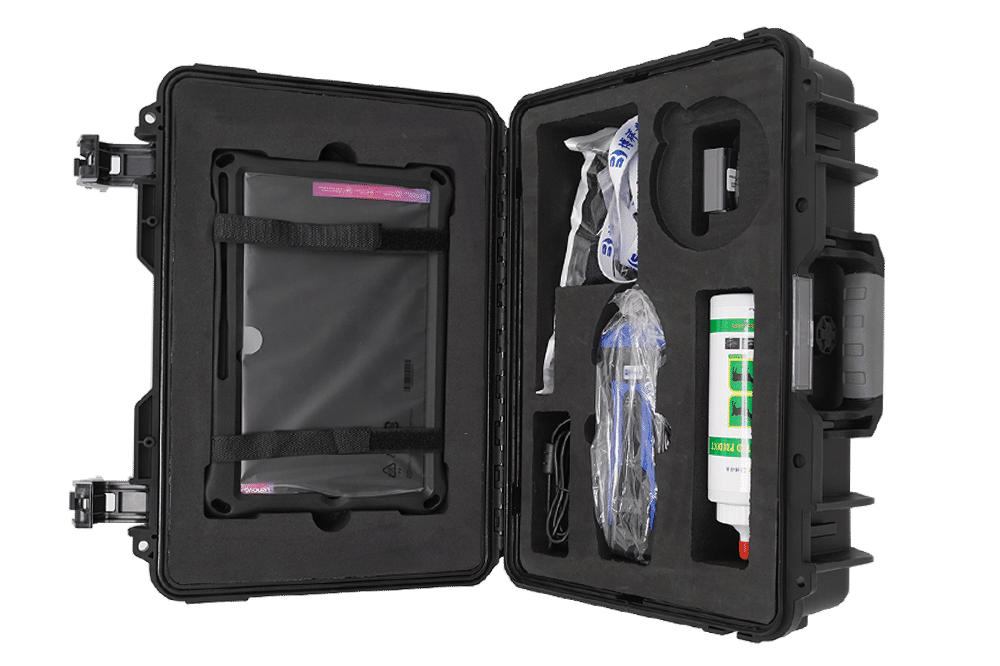

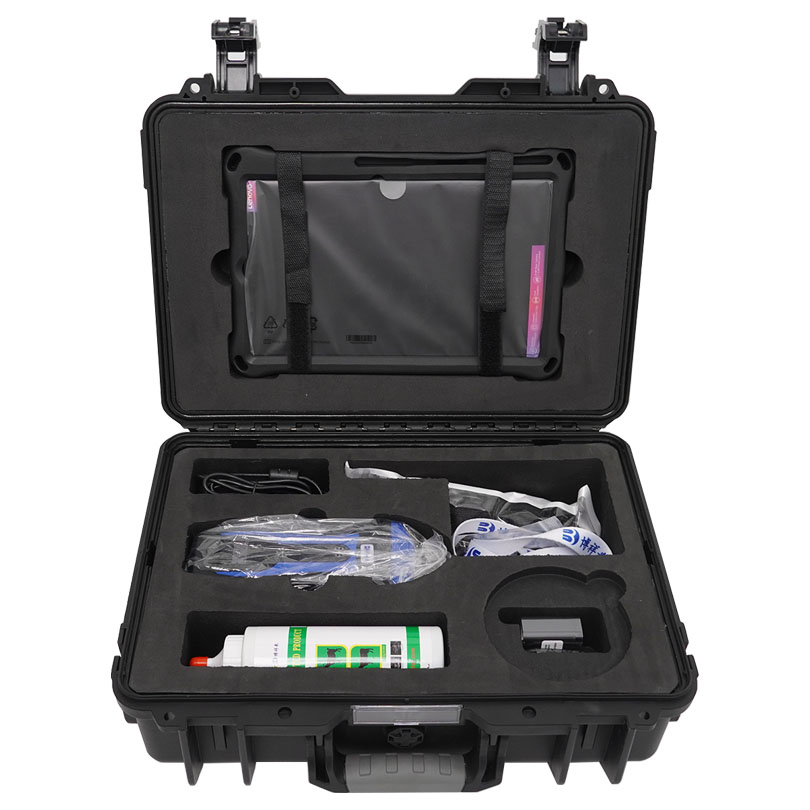

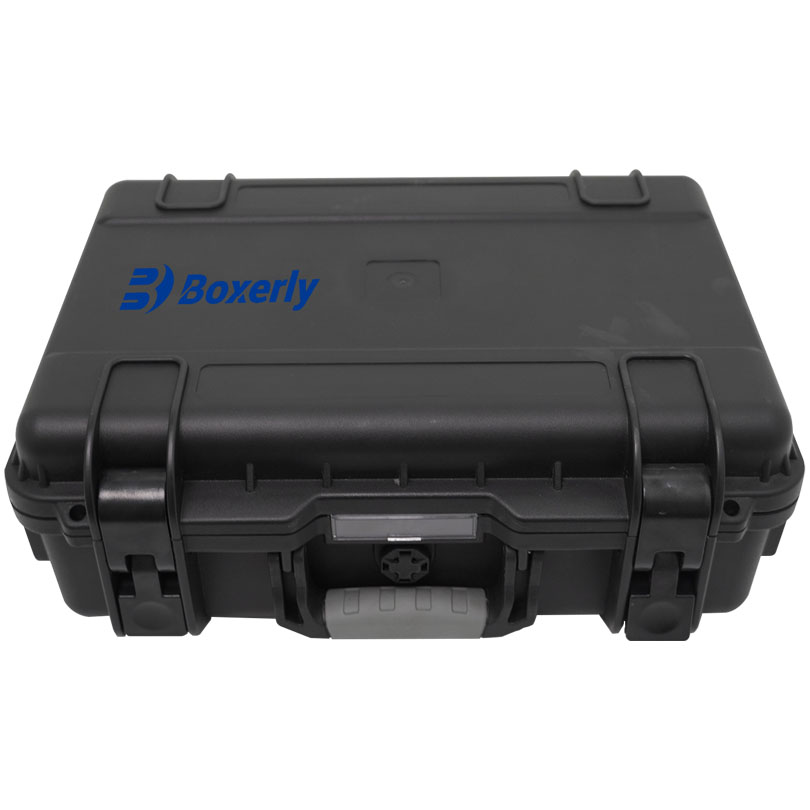

· Carrying Case ×1

· Ultrasound Gel ×1 bottle

Optional Accessories

· Extension Rod
