BXL-V80 Veterinary Doppler Ultrasound | 128/192-Element Probes | Backfat & Eye Muscle | IPX7 Waterproof | 7h Battery

المواصفات الفنية

1.1 The whole unit is waterproof and dustproof, with a waterproof rating of IPX7; sturdy and durable.

1.2 Fully digital compact animal-specific Doppler color ultrasound system, suitable for scanning cattle, غنم, خيول, الخنازير, donkeys, إبل, الصغيرة, wildlife, and other animals.

1.3 عدد القنوات: 64

1.4 Battery life: ≥7 hours

1.5 Ultrasound scanning modes: multiple display modes including B, ب / م, M; Doppler color ultrasound modes: CF, M, PW, PDI, DPDI, and puncture enhancement mode (only for linear array probes).

1.6 Doppler color ultrasound CF mode imaging: all supplied probes support color Doppler imaging; probe color Doppler frequency: 4.0–5.7 MHz, 4 adjustable groups; color gain: 1–100% adjustable; PRF: 0.5–8.4 KHz adjustable; wall filter: 210–1680 Hz adjustable; deflection angle: -20–20° adjustable.

1.7 Measurement units adjustable in cm/mm, precision up to 0.01 level.

1.8 Images can be saved directly without freezing; freeze button auto-freeze adjustable in 5 levels: 5 min, 10 min, 15 min, 30 min, never.

1.9 Optional GPS positioning available.

1.10 Wired display connection supports tablet, smartphone, laptop, desktop; display size and resolution customizable.

1.11 Display supports wireless display via free APP; APP compatible with Android and Windows OS.

1.12 System grayscale: 256 levels; system dynamic range: 36–120 dB adjustable.

1.13 Segment gain: TGC eight-level adjustable; TGC adjustable with one key.

1.14 Three-synchronization: real-time display of B+PW dual-sync mode or B+CF+PW triple-sync mode.

1.15 Parameters adjustable via sliding.

1.16 Supports Chinese and English interface; expandable to Spanish, Russian, Arabic.

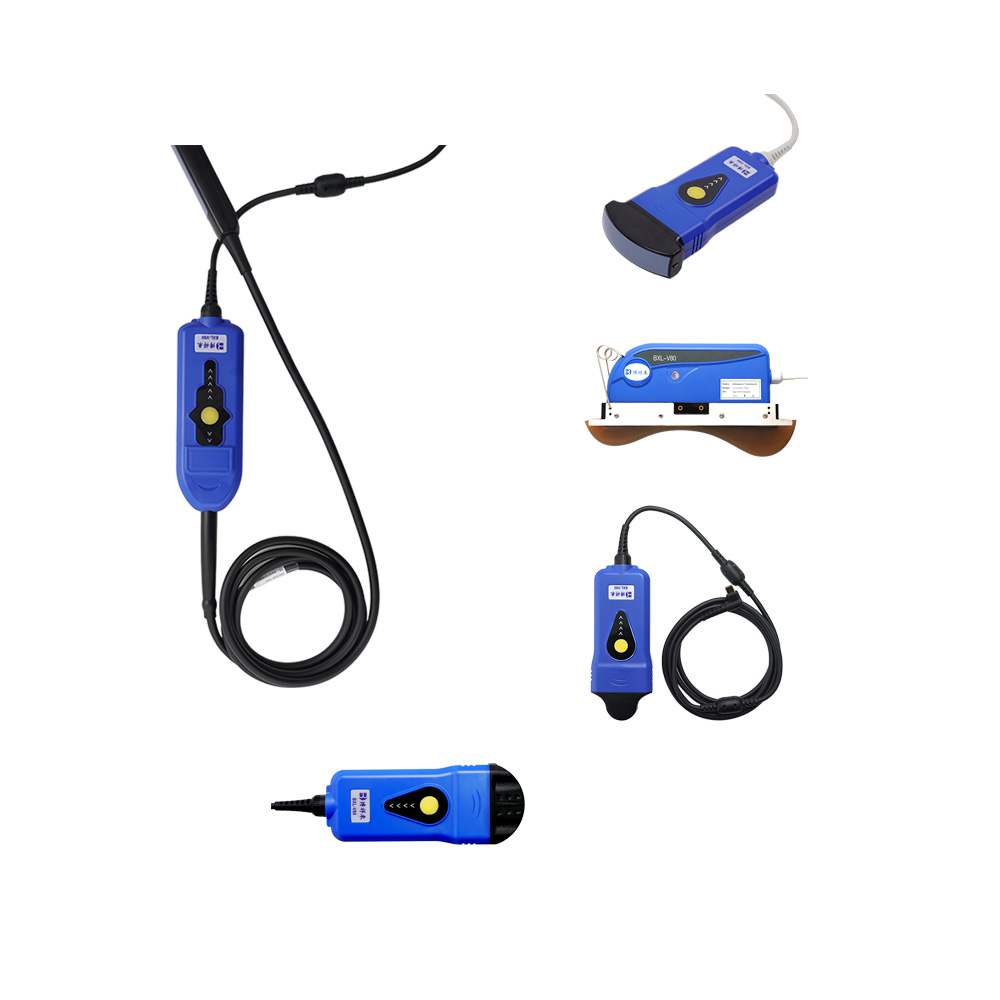

1.17 Main probes: 128-element rectal linear array BXL-V80 (expandable to 192 elements), 128-element convex probe BXL-V80 Convex, 128-element high-frequency linear probe BXL-V80 High-Freq (expandable to 192 elements), 128-element sheep rectal probe BXL-V80 Sheep Rectal (expandable to 192 elements), 128-element rectal convex array BXL-V80 Rectal Convex, 128-element backfat probe BXL-V80 Backfat (expandable to 192 elements), 128-element micro-convex probe BXL-V80 Micro-Convex.

1.18 In B mode: كسب: 1–100% adjustable; تردد: 4.0–9.0 MHz adjustable; Dynamic range: 36–120 dB adjustable; Harmonics: 4.0–9.0 MHz adjustable.

1.19 One-key image optimization function, speckle reduction.

1.20 Measurement and analysis: supports distance, circumference, area, circle area, الخ.; includes multiple animal-specific obstetrics software packages with ≥50 types of obstetric measurements; supports cardiac and other measurements.

1.21 Main unit usage: can be clipped to belt or handheld; display usage: wrist strap or hanging strap.

1.22 Grid setting for quick measurements; ≥20 types of quick grid measurement display.

1.23 Intelligent measurement of backfat thickness and eye muscle area.

1.24 AI intelligent recognition supported.

1.25 وظائف متعددة محددة مسبقا للنظام; B-mode imaging can be locally zoomed in/out; image sliding adjustment supported.

1.26 Examination types: built-in software includes presets for embryo, ovary, uterus, urinary system, backfat, and other parts of cattle, غنم, خيول, الخنازير, donkeys, الخ.; ≥50 examination modes; users can customize preset parameters.

1.27 Body marks: for cattle (الجنين, ovary, uterus, urinary system, backfat, rump, الخ.), الخنازير, معز, buffalo, غنم, الالبكه, قطط, dogs, الخ.; ≥60 body marks available.

1.28 خزن: static image storage and preview; images can include animal body marks; dynamic cine storage and playback supported; per-frame editing and icon addition supported.

1.29 Animal reports: automatically read electronic ear tags; collect data from smart devices; archive images/videos by ear tag; edit ear tag info and statuses; when saving animal images, photos can be captured for reference; wireless printer connection for report printing.

1.30 Patent product, patent number: [blank]

1.31 معدل إطارات الصورة: 60 fps

1.32 Main unit dimensions: 193 × 91 × 32 المليمتر (L × W × H) = 7.6 × 3.58 × 1.26 inches

1.33 Software version: Animal-specific version V8.0.0

Q1:من نحن?

A1: نحن شركة رائدة في مجال الموجات فوق الصوتية الحيوانية في الصين. لقد احتلنا حصة كبيرة من السوق الصينية منذ تأسيسنا في 2014. تم تصدير منتجاتنا إلى عشرات البلدان في أوروبا وأمريكا الجنوبية لفترة طويلة. تتمتع منتجاتنا بسمعة طيبة لموثوقيتها الممتازة وأسعارها المنخفضة.

Q2:Mode of transport

A2: Mainly by sea, usually CIF, customers bear the freight and tariffs

Q3: How to operate the equipment? Is there any operation guide or remote training?

A3: Provide video teaching, and you can provide remote online practical guidance if you don’t know how to do it

Q4: Does it support multi-language operation interface?

A4: Yes, you can freely switch between English, French, Spanish, الصينية, الخ.

Q5: ما هو وقت التسليم الخاص بك?

A5: كمية صغيرة (اقل 10 طقوم) يمكن أن السفينة إلى clents لدينا في الداخل 3 أيام عمل لمعظم موديلاتنا, large quantity (more than 30 units) is negotiable.

Q6: How to deal with equipment problems? Do you provide remote technical support?

A6: We provide remote technical support. The technicians will handle it first. If the equipment or probe is damaged, it will be replaced free of charge within the warranty period. If it exceeds the warranty period, it will be replaced at a fee.

Q7: Do you support third-party universal accessories?

A7: No

Q8: What couriers are supported?

A8: UPS, DHL, FEDEX

Q9: Do you provide customs clearance documents, certificates of origin, invoices, packing lists, الخ.?

A9: Yes

Q10: Which countries and regions have local cooperative service providers?

A10: المكسيك, كولومبيا, الأرجنتين, الهند, تايلاند, باكستان, بيرو, أوزبكستان, السويد

Q11: Can you provide CE certification?

A11: Yes

Q12: Has the transportation insurance been purchased? What if it is damaged during transportation?

A12: It has been purchased. The express company will compensate for damage or loss during normal transportation. If it is the customer’s own freight forwarder, he will be responsible for it.

Q13: Does it support customized LOGO?

A13: It supports customization, and the delivery time is 5 ل 7 أيام

Q14: Normal delivery time

A14: After receiving the customer’s payment information, if the non-customized logo is in stock, the factory can generally ship it within three days.

Standard Accessories:

Main unit — 1

Tablet display — 1

Tablet protective case — 1

Shoulder strap — 1

Adapter — 1

Wireless charger — 1

Learning USB drive — 1

Manual/Certificate/Warranty card — 1 set

Carrying case — 1

Coupling agent — 1 bottle

Belt clip — 1

Optional Accessories:

Extension rod
